Description

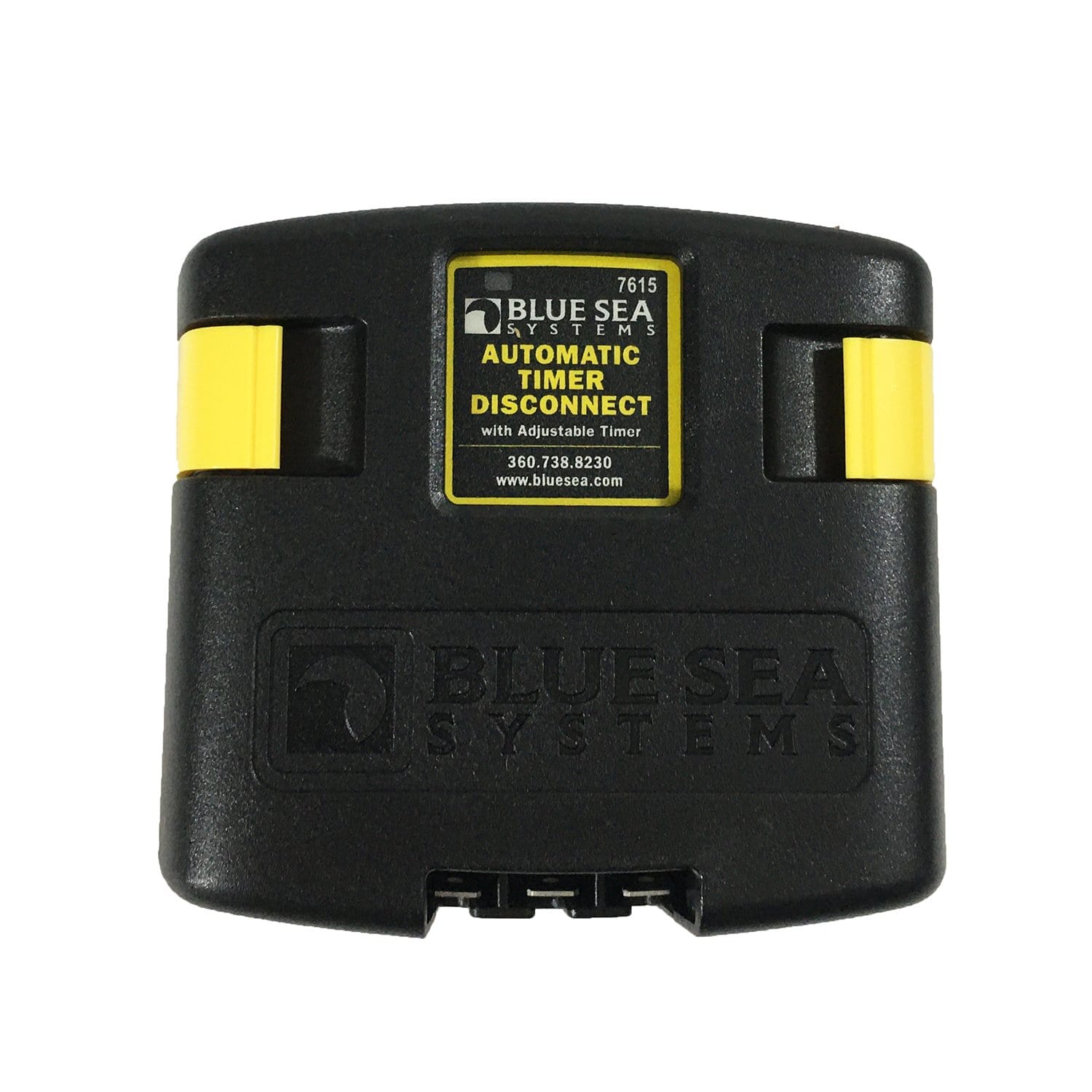

The 7615-BSS is an ATD automatic timer disconnect
Specifications
| amperage operating current | 175mA (closed) 4mA (open) |
| cable size to meet ratings | 1 AWG (50mm┬▓) |
| charge sense connect | 13.0V (3 sec) |
| charge sense disconnect | 12.75V (10 sec) |
| continuous rating | 120A |
| disconnect time | 5 sec, 15 min, 30 min, 1 hr, 1.5 hr, 2hr, or 4hr |
| input voltage range | 9.5-16V |
| intermittent rating | 210A (5 Min) |
| low voltage disconnect | 11.0V (10 sec), 11.5V (10 sec), 12.0V (10 sec) |
| maximum cable size | 1/0 AWG (50mm┬▓) |
| nominal voltage | 12V DC |
| over voltage lockout | 16.0V (5 sec) |
| stud material | Tinned Copper |
| terminal ring dia. clearance | 1.12in (28.45 mm) |
| terminal stud size | 3/8"-16 (M10) |
| terminal stud torque | 140 in-lb (15.82 Nm) |
| weight | 1.25 lbs. |
