Description

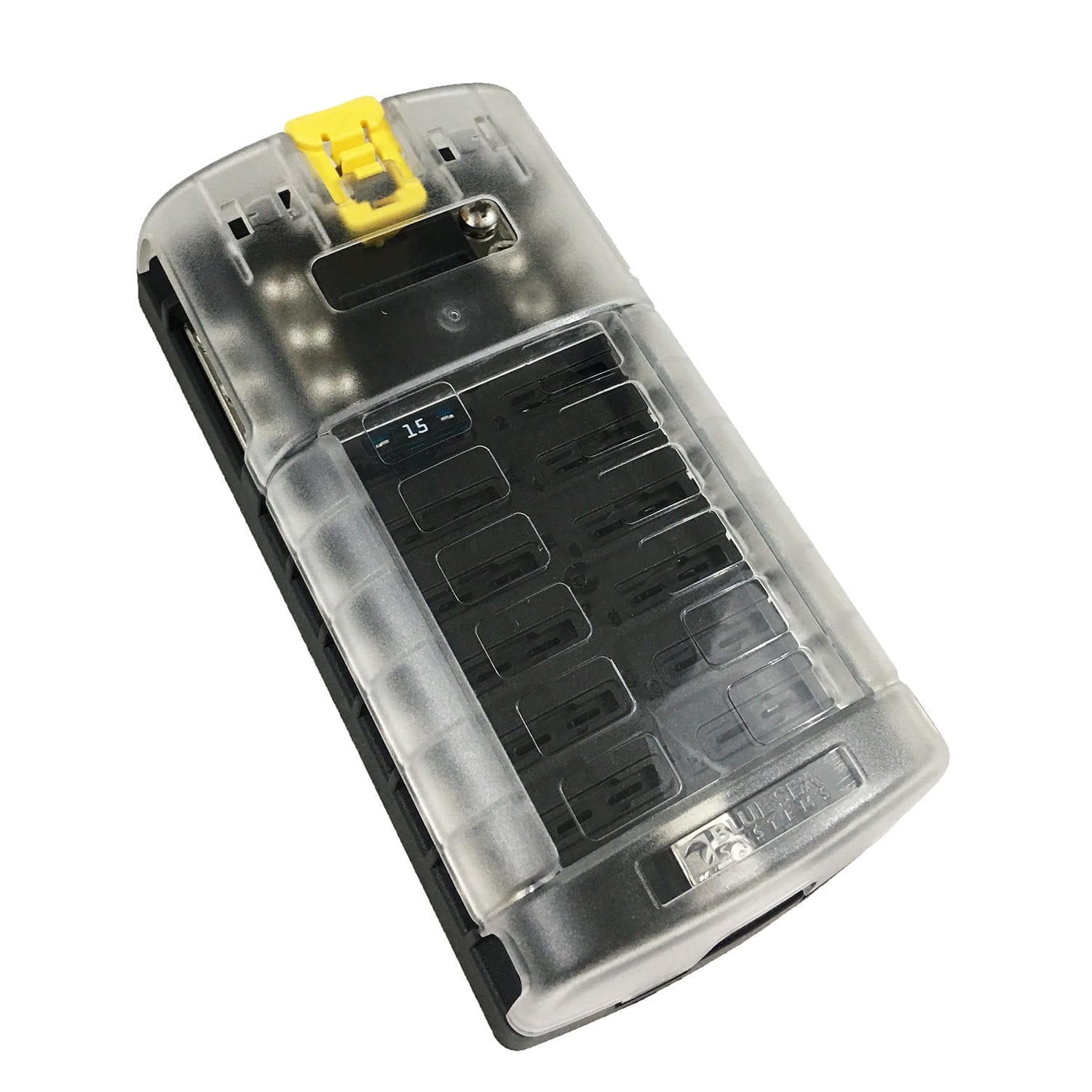

The 5026-BSS is a 12 circuit blade fuse block with a negative bus and cover
Specifications
| circuits | 12 |
| maximum amperage | 100A per block, 30A per circuit |
| maximum voltage | 32V DC |
| mounting | #8 Screw (M4) |
| negative bus | #10-32 Stud |
| positive bus | #10-32 Stud |
| recommended torque | 24 in-lb (2.71 N┬╖m) |
| screw terminal torque | 18 in-lb (2.03 Nm) |
| screw terminal type | #8-32 Screws with captive star lock washer |
| weight | 0.75lb |
