Description

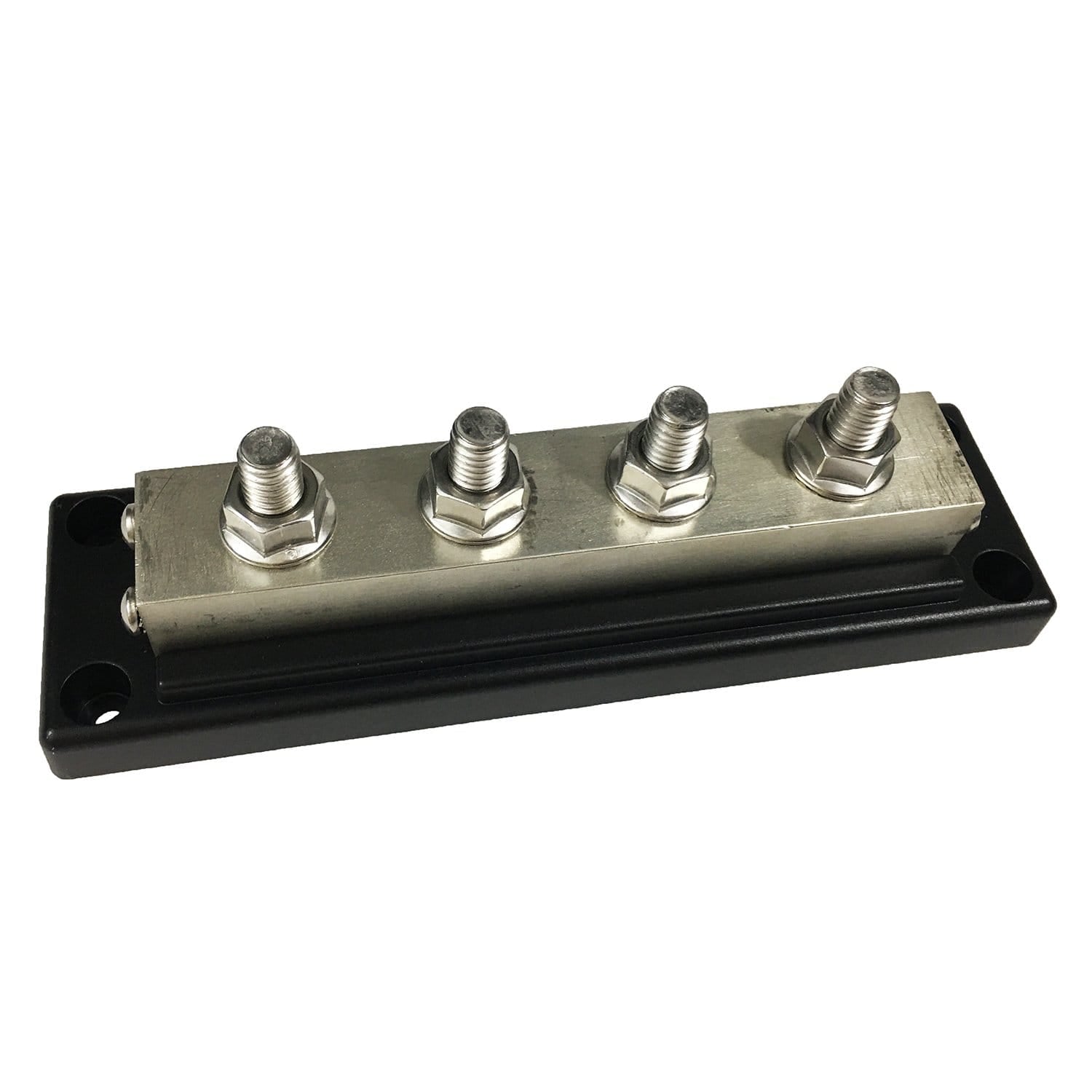

The 2104-BSS is a PowerBar 600 Amp BusBar with four 3/8" 16 studs
Specifications
| base material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| continuous rating | 545A AC, 600A DC |
| fuse mounting blocks | 3/8"-16 Stud |
| interrupt capacity | 140 in-lb (15.82 Nm) |
| maximum voltage | 300V AC, 48V DC |
| screw material | Tin-Plated Copper CDA, 110/UNS11000 |
| terminal screws | 15 in-lb (1.69 Nm) |
| terminal stud torque | 140 in-lb (15.82 Nm) |
| terminal type | 4 |
| weight | 1.75lb |
