Description

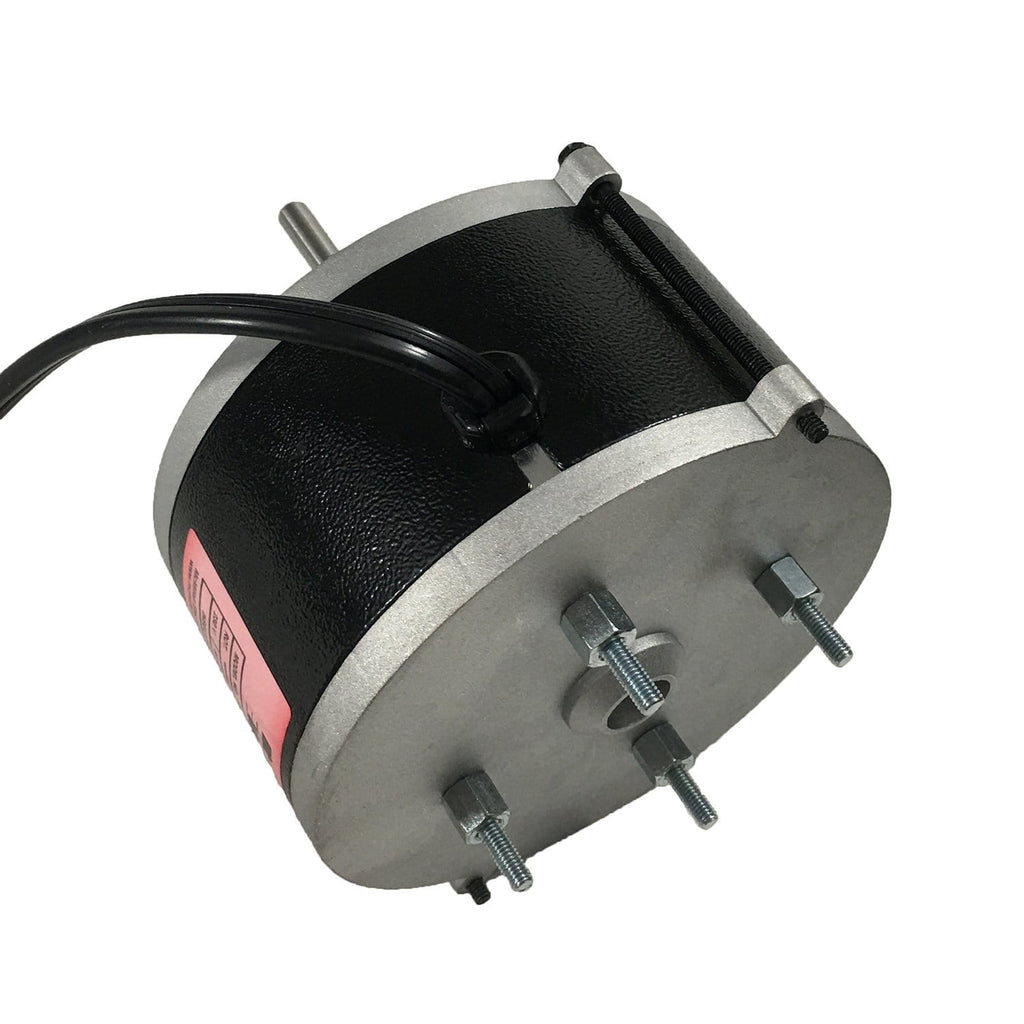

The Heatcraft 97701 is a replacement evaporator fan motor from Packard, suitable for 1/15, 1/20, or 1/25 HP systems running at 230 volts and 1625 RPM. It features four mounting studs on each end and an energy-saving ECM design. Additionally, it comes with a cord and Lyall plug for convenient installation.
Features:
- Energy Savings ECM Design
- 42 Frame
- Ball Bearings
- 60 Hertz
- Class B Insulation
- Four Mounting Studs on Each End
- Includes Cord and Lyall Plug
Specifications
| amps | 0.7 |
| bearings | Ball |
| brand | Packard |
| country of origin | USA |
| enclosure | TEAO |
| h.p. | 1/15-1/20-1/25 |
| hertz | 60 |
| includes | Lyall plug |
| insulation class | B |
| length less shaft | 2.85" |
| motor rotation | CWSE |
| motor type | ECM |
| motor voltage | 230 |
| mounting option | Stud |
| nema frame | 42 |
| rpm | 1625 |
| shaft dimensions | 5/16 x 2.95 |
| speeds | 1 |
| voltage | 230V |
