Description

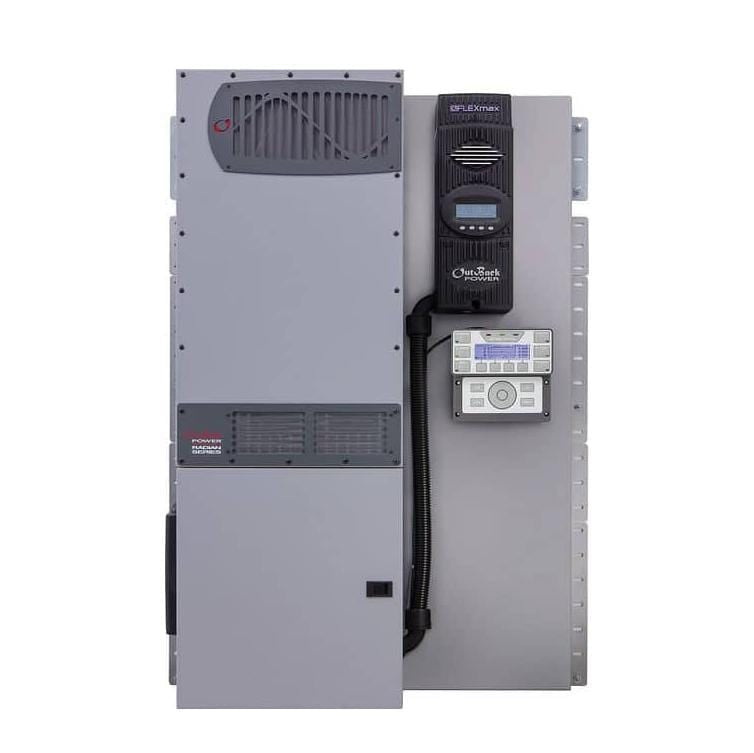

FPR-4048A-01 GS4048-01 Inverter/Charger 4.0 kW, 48 VDC
*Not available for local pick-up
Specifications
| accessory ports | Remote temperature sensor (included), MATE3s and HUB communications |
| ac input voltage range | (MATE3s Adjustable): L1-N or L2-N: 85 to 140VAC |
| ac output frequency | 60 Hz (50 Hz) |
| ac output voltage | 120/240VAC (200 to 260VAC) |
| advanced battery charging | : Flooded, gel, AGM, lithium-ion and flow chemistry |
| battery charge output | 57.5ADC |
| continuous ac output current | (@ 25┬░C): 16.7AAC |
| continuous power | 4000VA |
| dc input voltage range | 40 to 64VDC |
| dimensions | 34.5 x 21 x 14.5 In. |
| efficiency | (Typical) 93% |
| grid-interactive frequency | 59.3 to 60.5Hz |
| grid-interactive voltage range | L1-N or L2-N: 108 to 132VAC |
| idle power | Invert mode, no load: 34W Search: 10W |
| instantaneous power | 8500VA |
| maximum ac input current | 50AAC @ 240VAC |
| nominal dc input voltage | 48 VDC |
| output voltage regulation | ┬▒2% |
| peak power | 4500VA |
| surge power | 6000VA |
| temperature range | (Rated) ΓÇô20 to 50┬░C Maximum: ΓÇô40 to 60┬░C |
| utility interactive current | 15A |
| warranty | Standard 5 year, extended 10 year available |
| weight | 94 lbs |
