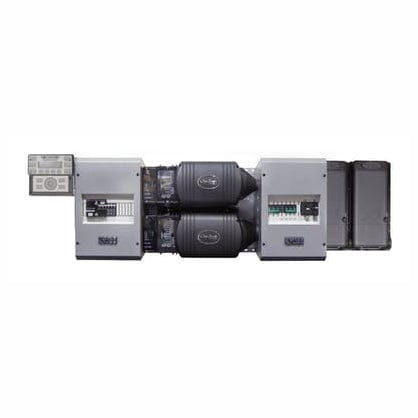

Outback Power FP2 VFXR3648A-300 Flex Power Two 7.2 KW, 48 VDC Dual Inverter System

Save £1,303.00
Outback PowerSKU: FP2 VFXR3648A-300

Price:
Sale price£6,062.00 Regular price£7,365.00
Stock:
Sold out
Free Shipping* (Some exclusions apply)

Description

FP2 VFXR3648A-300 Flex Power Two 7.2 KW, 48 VDC Dual Inverter System


*Not available for local pick-up


Specifications

accessory ports Remote temperature sensor (included), MATE3 and HUB communications
ac input frequency range 54 to 66Hz (45 to 55Hz)
ac input voltage range (MATE Adjustable) 85 to 140VAC
ac output frequency 60Hz (50Hz)
ac output voltage 120VAC (100 to 130VAC)
advanced battery charging Flooded, gel, AGM, lithium-ion and flow chemistry
battery charge output 45ADC
certifications UL1741, CSA C22.2 No. 107.1, UL1778, Annex FF
charging current AC: 60AAC / DC: 45ADC / Power: 2450VA
continuous ac output current (@ 25┬░C) 30AAC
continuous power (@ 25┬░C) 3600VA
dc input voltage range 42 to 68VDC
dimensions 22 x 13 x 22 In.
efficiency (Typical) 93%
grid-interactive frequency 59.3 to 60.5Hz
grid-interactive voltage range 106 to 132VAC
humidity 0.93
idle power Full: ~34W Search: ~9W Off: ~3W
instantaneous power (100ms) 6000VA
maximum ac input current 60AAC
nominal dc input voltage 48VDC
output voltage regulation ┬▒2.5%
peak power (30 min) 4000VA
surge power (5 sec) 5400VA
temperature range Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C
warranty Standard 5 year, extended 10 year available
weight 67 lbs
