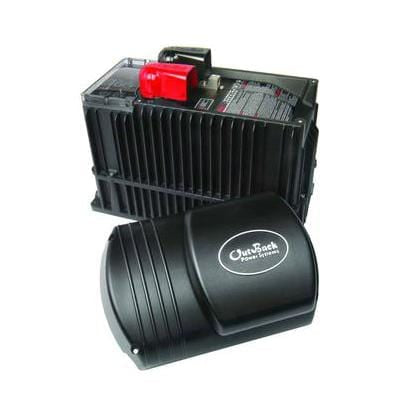

OutBack Power FP1 FXR3048A-01 Outback FLEXpower One FP1 FXR3048A-01 3,000 Watts 48 Volts for Off-Grid and Grid-Tie

Save £768.00
OutBack PowerSKU: FP1 FXR3048A-01

Price:
Sale price£3,573.00 Regular price£4,341.00
Stock:
In stock (5 units)
Free Shipping* (Some exclusions apply)

Description

FP1 FXR3048A-01 Outback FLEXpower One FP1 FXR3048A-01 3,000 Watts 48 Volts for Off-Grid and Grid-Tie

Specifications

accessory ports Remote temperature sensor (included), MATE3s and HUB communications
ac input frequency range 54 to 66Hz (45 to 55Hz)
ac input voltage range (MATE Adjustable) 85 to 140VAC
ac output frequency (selectable) 60Hz (50 Hz)
ac output voltage (selectable) 120VAC ( 100 to 130VAC)
advanced battery charging Flooded, gel, AGM, lithium-ion and flow chemistry
battery charge output 35ADC
certifications UL1741, CSA C22.2 No. 107.1, UL1778, Annex FF
continuous ac output current (@ 25┬░C) 25AAC
continuous rating (@ 25┬░C) 3000VA
dc input voltage range 42 to 68VDC
efficiency 0.93
grid-interactive frequency 106 to 132VAC
grid-interactive voltage range 59.3 to 60.5Hz
humidity Rating 93%
idle power Full: ~34W Search: ~9W Off: ~3W
instantaneous power 6000VA
maximum ac input current 60AAC
maximum battery charging AC: 14AAC DC: 35ADC Power: 1900VA
nominal dc input voltage 48VDC
output voltage regulation ┬▒2.5%
peak power (30 Min) 3200VA
surge power (5 Sec) 5400VA
temperature range Rated: ΓÇô20 to 50┬░C Operating: ΓÇô40 to 60┬░C Storage: ΓÇô40 to 60┬░C
total harmonic distortion Typical: <2% Maximum: <5%
warranty Standard 5 year, extended 10 year available
