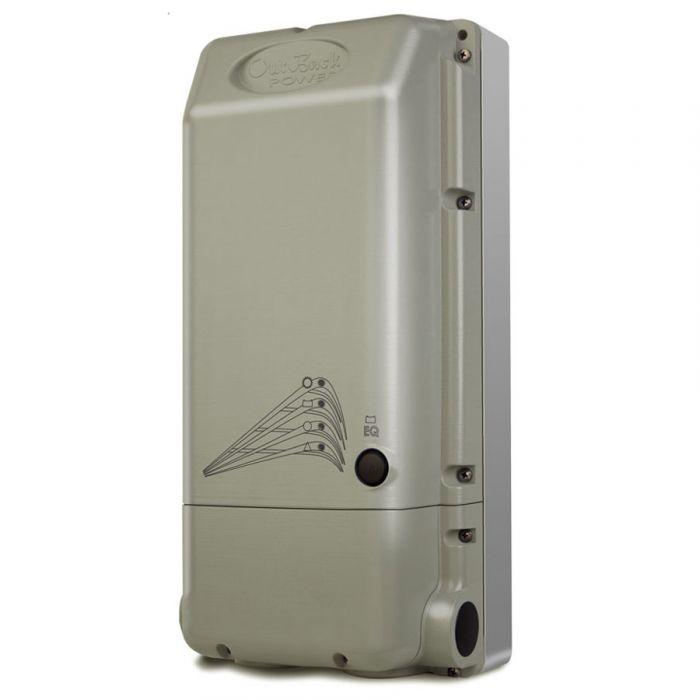

OutBack Power FMEXTREME 80A MPPT Charge Controller

Save £117.00

Sale price£555.00 Regular price£672.00
In stock (5 units)
Free Shipping* (Some exclusions apply)


FMEXTREME 80A MPPT Charge Controller


battery temp. compensation Automatic with optional RTS installed
certificates UL1741, IEC 62109, IEC 62509, RoHS, CE
charging regulation Five Stages Bulk, Absorption, Float, Silent and Equalization
conduit knockouts 5
data logging Last 128 days of operation
equalization charging Programmable voltage setpoint and duration automatic termination when completed
nominal voltage 12, 24, 36, 48 or 60Vdc (Selectable via field programming at start-up)
operating temperature range -40 to 60┬░C (Full power output -20 to 40┬░C)
output current 80A @ 40┬░C / 104┬░F with adjustable current limit
programable aux control output 12Vdc outputsignal which can be programmed for
standby power consumption Less than 0.5W typical
voltage step-down capability Can change a lower voltage battery from a higher
