Description

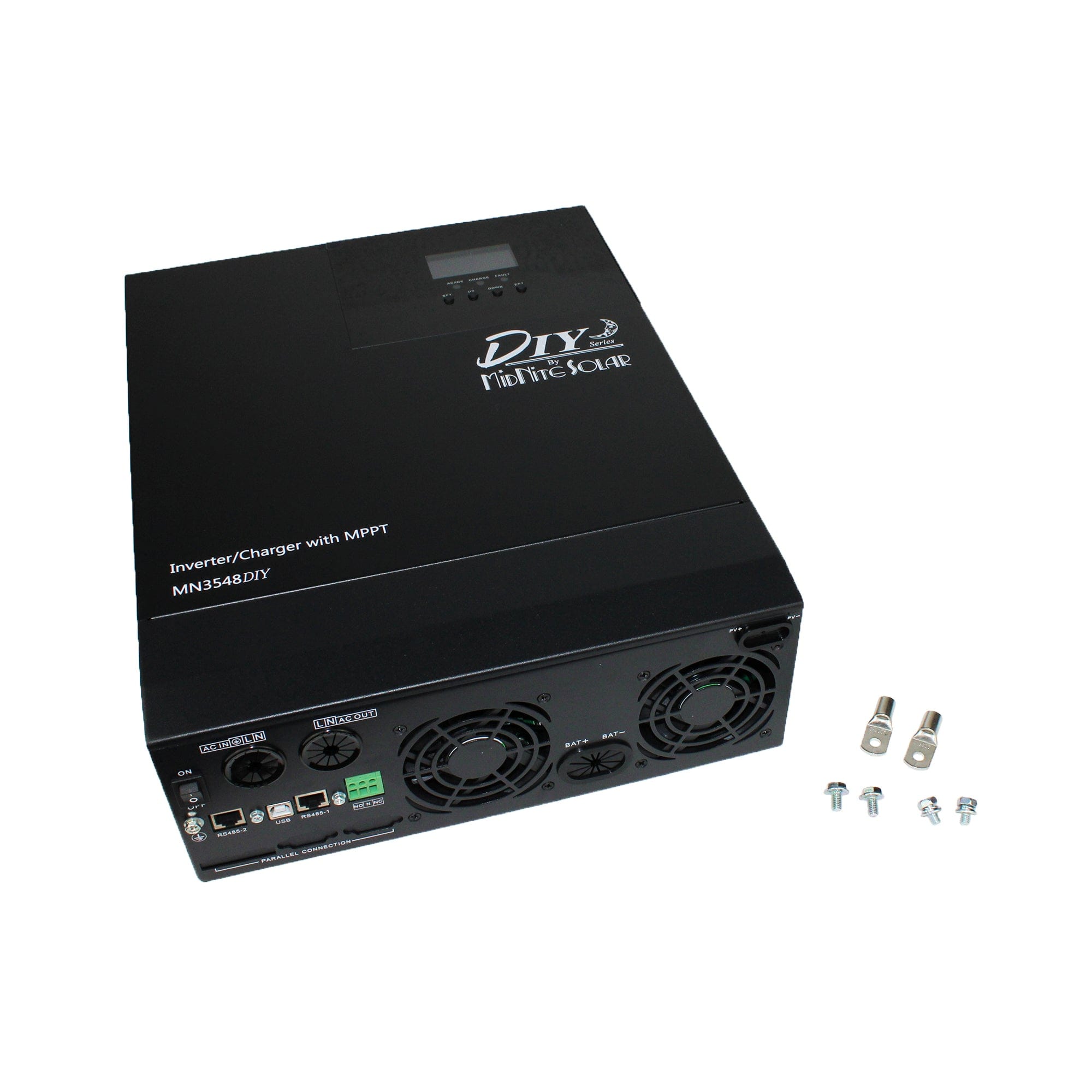

This is a 3500W, 48-volt inverter charger with MPPT charge controller. It offers flexible programming and an all-in-one installation. The new MidNite Solar Inverter/charger DIY Series will charge virtually any battery chemistry. It features superb surge capability; the DIY Series will start the most demanding 120VAC loads. Perfect for off-grid use, the DIY Series is manufactured to be affordable yet dependable.
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Algorithm | MPPT |
| Battery Type | Lead Acid or Lithium |
| Battery Voltage Range | 40 - 60V DC |
| Conversion | (Bypass and Invert): 10ms |
| Humidity | 5% ~ 95% (3 Layer Paint Protection) |
| Input Voltage | 120VAC |
| Input Voltage Range | 85-140VAC +- 2% Adjustable |
| Input/Output Frequency | 60Hz |
| Internal Bypass Current | Up to 40A |
| Max AC Charge Current | 30A |
| Max Battery Charge Current | 120A |
| Max PV Charge Current | 80A |
| Max PV Input Power | 4400W |
| Max PV Input Voltage | 145V |
| Max Rated Power | 3500W |
| MPPT Voltage Range | 60 - 115V |
| Nominal Battery Voltage | 48V |
| Operating Temperature | 5F - 131F / -15C - 55C |
| Output Voltage | 120VAC +- 5% |
| Output Waveform | Pure Sine Wave |
| Peak Efficiency | >95% |
| Power Factor | 1 |
| Storage Temperature | 13F – 140F / -25C - 60C |
| Surge Power | 7000W |
| System Voltage | 48VDC |
| Warranty | 1 Year from Manufacturer |
