Description

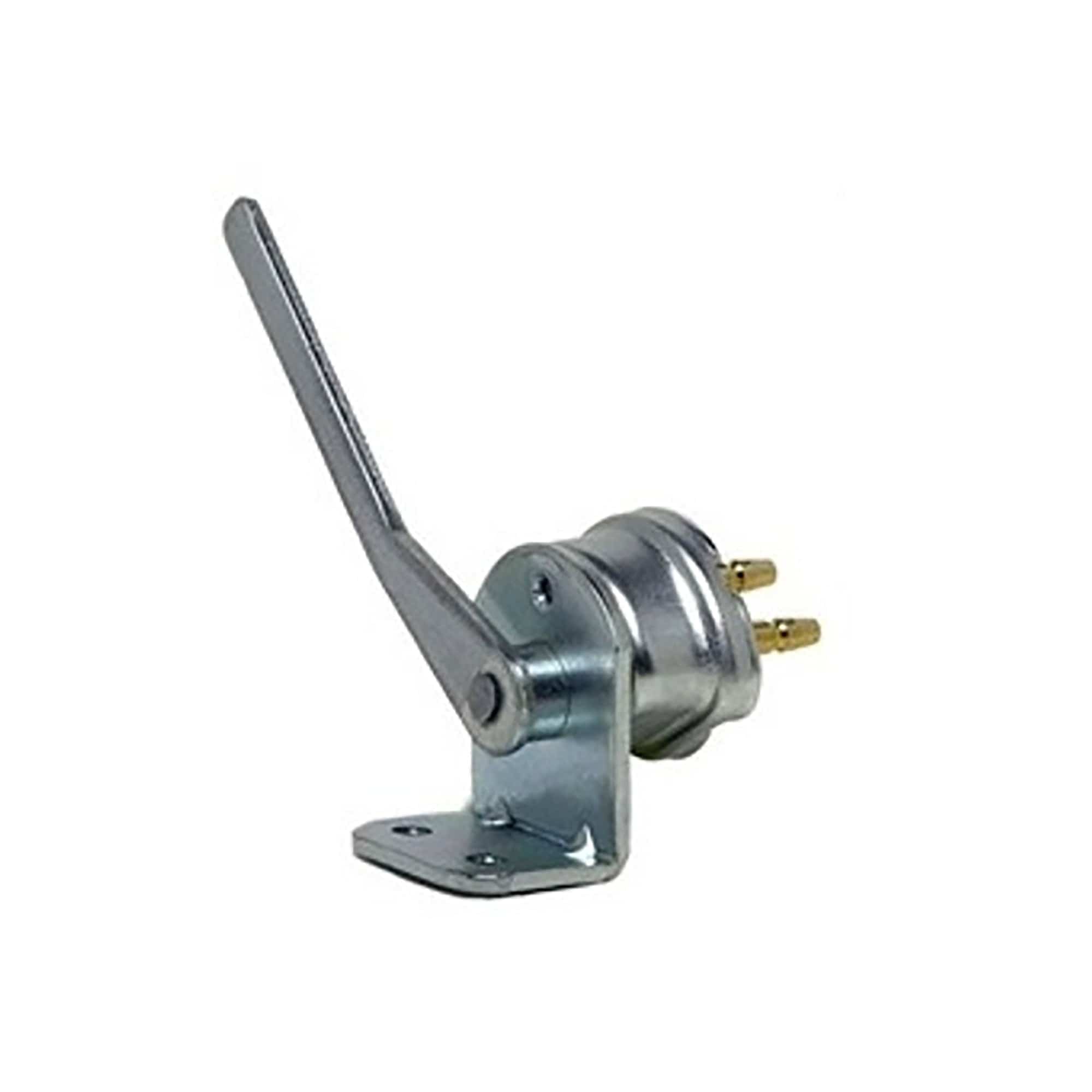

Introducing the Mechanical Stoplamp Switch
When viewed from the terminals. the lever projects to the right. Lever is 2 7/8" overall length. Two tapped 10-32 mounting holes. 5/8" on centers. Replaces: Delco D851. D853. D855. GMC 1997901. 1997915. 1997922. Motorcraft SWG-317. Wagner FC-21630. Single Pile Single Throw switches that are Normally On (Spring return to On) or Normally Off (Spring return to Off)
WARNING: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/
Specifications
| Actuator | Lever |
| Circuitry | SPST |
| Current Rating | 4.6A |
| Housing | Plated Steel |
| Input Terminals | Two #10-32 Terminal Screw |
| Mounting Method | Two 10-32 tapped holes 5/8 (15.87 mm) on center |
| Normal Position | Normally Closed; Spring Return to Closed |
| Voltage Rating | 12V |
