Description

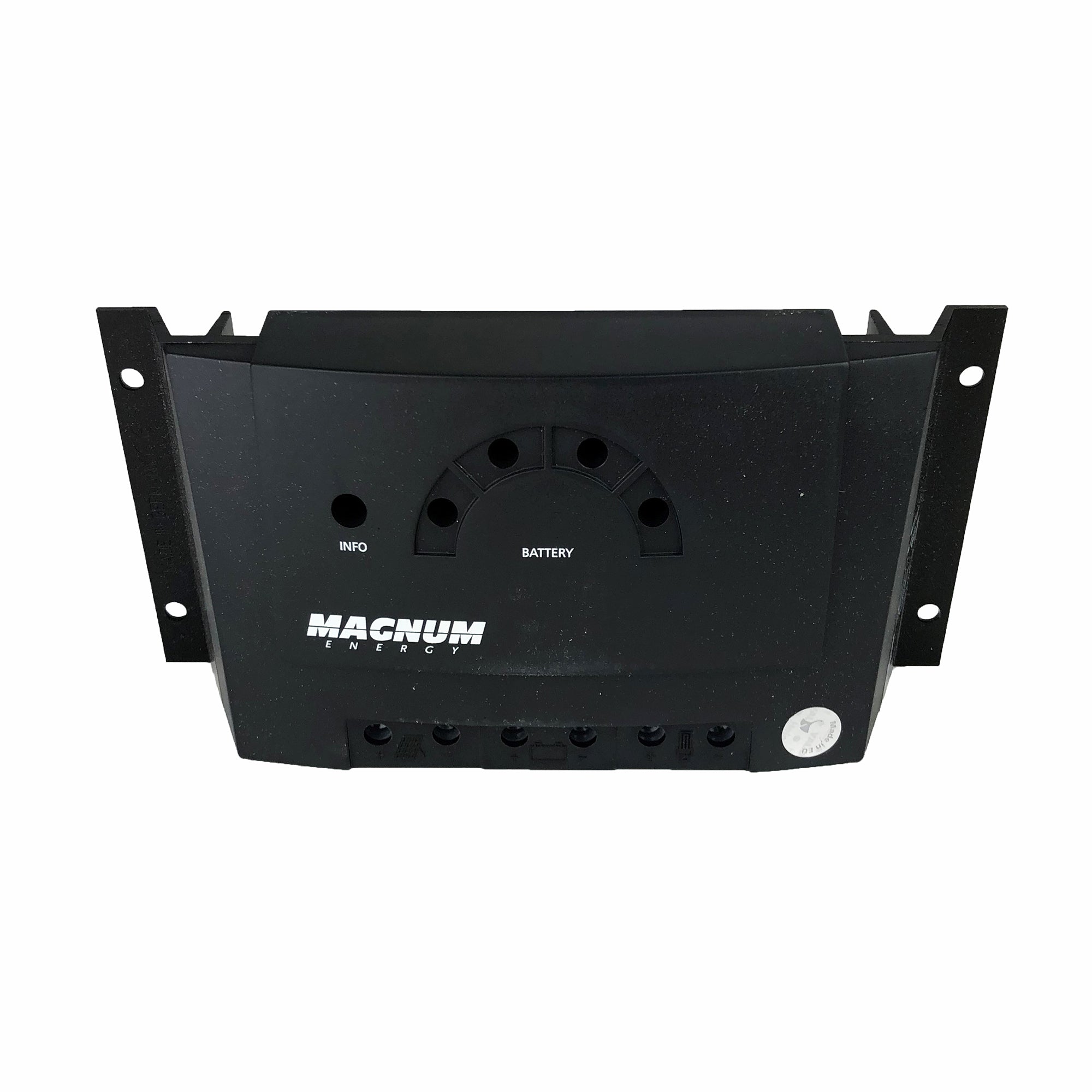

This is a 30A solar charge controller featuring automatic voltage detection, serial topology with MOSFETs, voltage regulation, PWM control, multi-stage charging technology, and multi-function LED display.
- Serial topology with MOSFETs
- Automatic detection of voltage
- Voltage regulation
- PWM control
- Multi-stage charging technology
- Negative earthing of one or positive earthing of several terminals possible
- Temperature compensation
- Multifunction LED display
- 4 LEDs show operating states for operation, state of charge, fault messages
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| 12V voltage range | 6.9V – 17.2V |
| 24V voltage range | 17.3V – 43V |
| Ambient temperature range | –10 °C to +50 °C |
| Boost charging | 14.4V / 28.8V |
| Casing | Recyclable plastic case |
| Connection terminals | 16 mm2 / 25 mm2, AWG: 6 / 4 |
| Consumption in mA | 12.5 mA |
| Degree of protection | IP31 |
| Dimensions (LxWxH) | 187 x 96 x 44 mm |
| Equalization charging | (equal): 14.7 V / 29.4 V |
| Load switch-off | > 85 °C |
| Load switch-on | < 75 °C |
| Max input voltage | < 47V |
| Min battery voltage | 6.9V |
| Mounting hole | Clearances 60 mm vertical, 177 mm horizontal |
| Mounting method | Wall mounting |
| Normal charging | (float): 13.9V / 27.8V |
| Operational voltage | 12V or 24V, automatically detected |
| PWM frequency | 30 Hz |
| Storage temperature range | –20 °C to +80 °C |
| Temperature compensation | -4 mV per K and cell |
| Weight | 350 g |
