Description

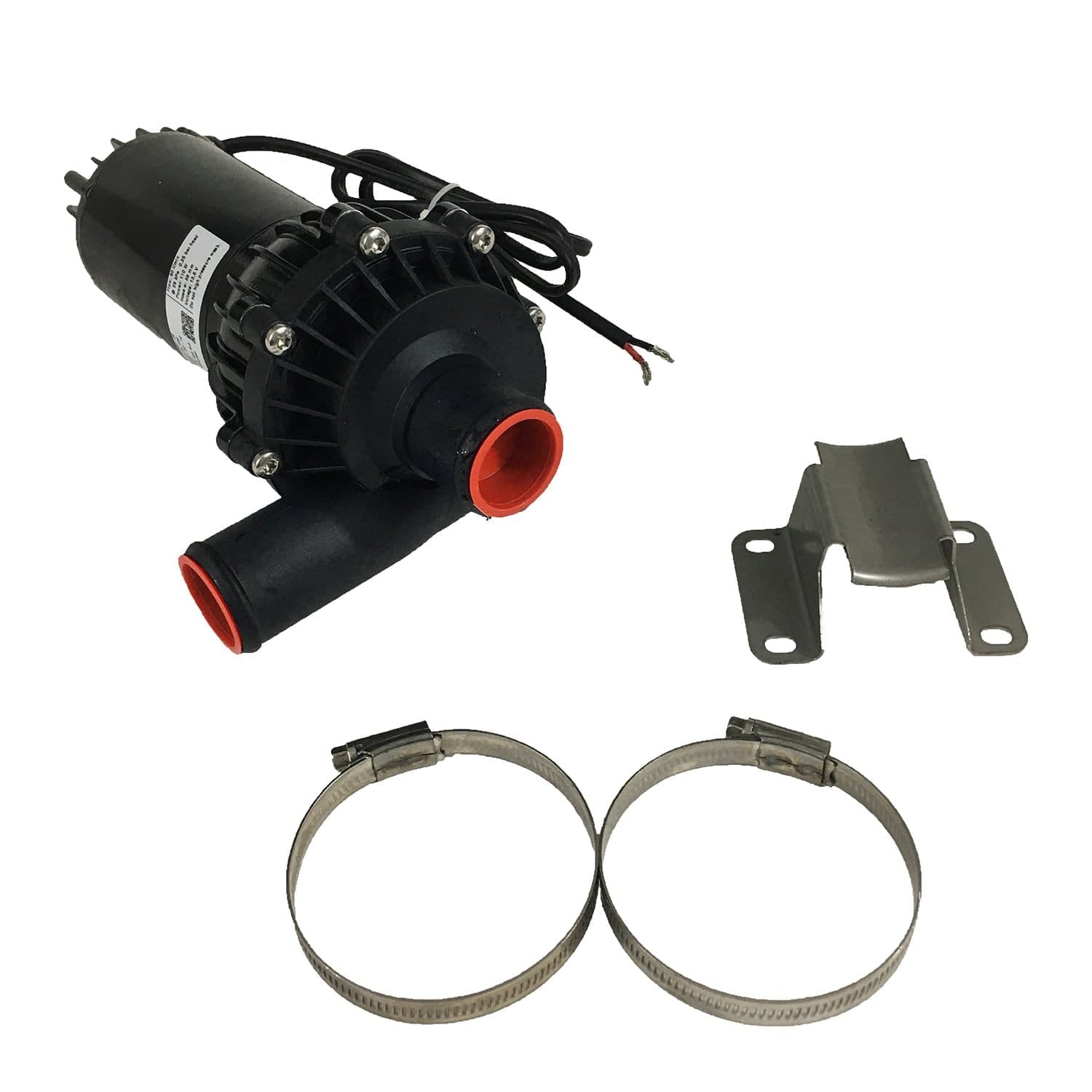

The 10-24664-09 is a 12 Volt, 30.4 GPM mag drive centrifugal circulating pump with 1 1/2" hose ports
Specifications
| body | PPA, glass-fiber reinforced |
| dimensions | 244mm (L) x 120mm (W) x 150mm (H) |
| dry running | 30 Minutes |
| input power | Max. 125W |
| liquid | Water/glycol mixture; max. 60% glycol, fresh and salt water |
| motor | Interchangeable |
| motor service life | More than 5,000 hours (Nominal Voltage) |
| motor voltage | Nominal 13.6V DC for use between 10-16V Nominal 27.2V DC for use between 20-32V |
| mounting | Separate universal bracket for flat surfaces |
| ports | ├ÿ 20mm (3/4") & ├ÿ 38mm (1-1/2") |
| pressure | -0.3 to +3.0 bar; stationary max. 4.0 bar |
