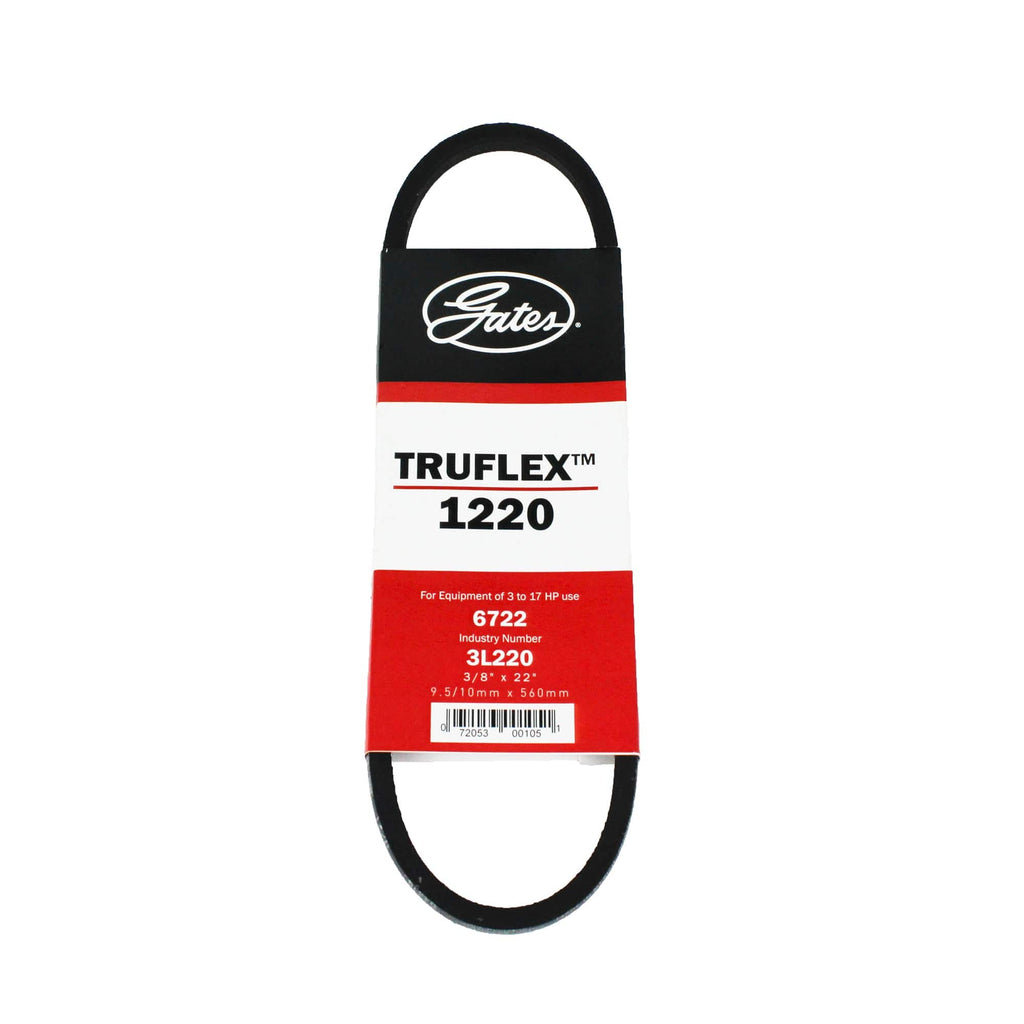

Gates 3L220 Truflex 1220 Notched L Section V Belt - 3/8" x 22"

GatesSKU: GAT-3L220

Sale price£7 Regular price£15 Save £8
19 In stock


This is a Truflex Notched V-Belt that provides the solution for high horsepower in limited drive weight or space applications. Our proprietary construction process provides a superior combination of flex and load-carrying capacity, transmitting up to 3X the horsepower versus comparably sized belts. With increased transmission efficiency this belt allows for a more compact and highly economical drive design.


  • Promotes smoother, quieter operation, with less slippage and belt wear for improved belt life reducing expensive maintenance time
  • Optimally designed for high horsepower, space-constrained applications with small pulley diameter drives
  • Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants, and heat for longer belt life
  • Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
  • Precision-ground straight sidewalls give a uniform wedging action and ensure the belt fits correctly in the pulley grooves for even wear and extended belt life
  • Molded notches reduce and evenly distribute thermal and bending stresses and reduce noise
  • Patented Ethylene Elastomeric compound construction protects belt against heat, ozone and sunlight
  • Meets ARPM/RMA IP-3-2 oil and heat resistance standards and ARPM/RMA IP-3-3 static conductivity requirements
  • Temperature Range: -70 Deg. F to +250 Deg. F (-57 Deg. C to +121 Deg. C)


Warning: Product may contain materials cautioned by California Proposition 65


Belt Type Truflex 3L Section
Outside Length 22 in.
Top Width 3/8 in.
