Description

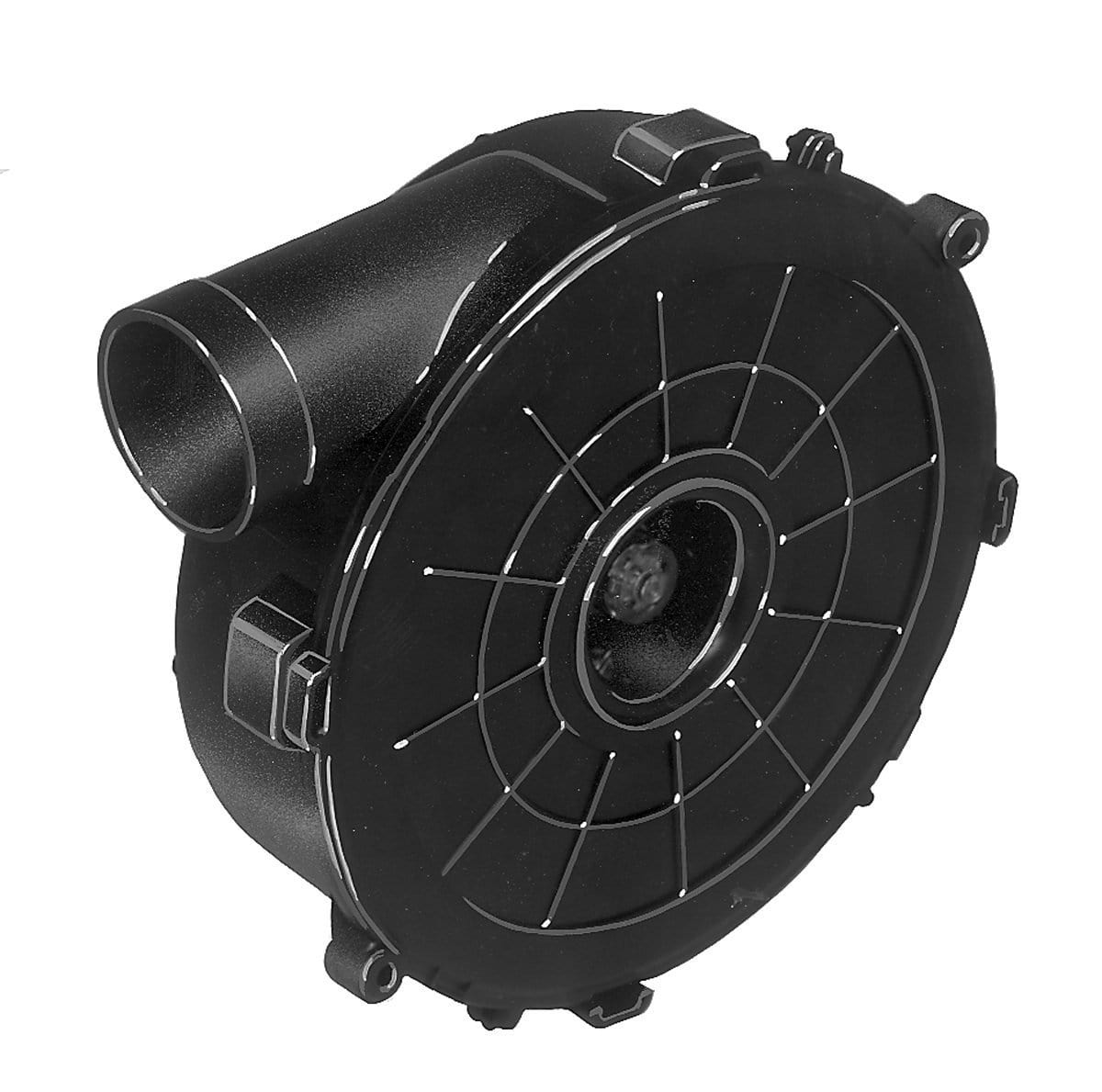

The Lennox A163 is a 115V, 1/20 HP, draft inducer blower from Fasco.
Features:
- OEM Direct Replacement - Draft Inducer Blower
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 7" Leads with Socket Terminals
Replaces:
-
Fasco
- 7021-10302
- 7021-10721
- 7021-9450
-
Emerson
- 3121
-
AllTemp
- FB-RFB547
-
Lennox
- 48L9601
- 67K0401
- 67K0401P
- 7021-10302
- 7021-10721
- 7021-9450
- FB-RFB547
- LB65734J
Specifications
| amps | 1.8 |
| amps at free air | 0.6 |
| bearings | Ball |
| brand | Fasco |
| diameter | 3.3" |
| enclosure | Open |
| frame | 3.3 |
| hertz | 60 |
| horse power | 2021-01-20 00:00:00 -0500 |
| nameplate cfm | 83 |
| overload | Automatic |
| phase | 1 |
| rotation | CCW |
| rpm | 3400 |
| rpm at free air | 3100 |
| speeds | 1 |
| type | Shaded Pole |
| voltage | 115 |
