Description

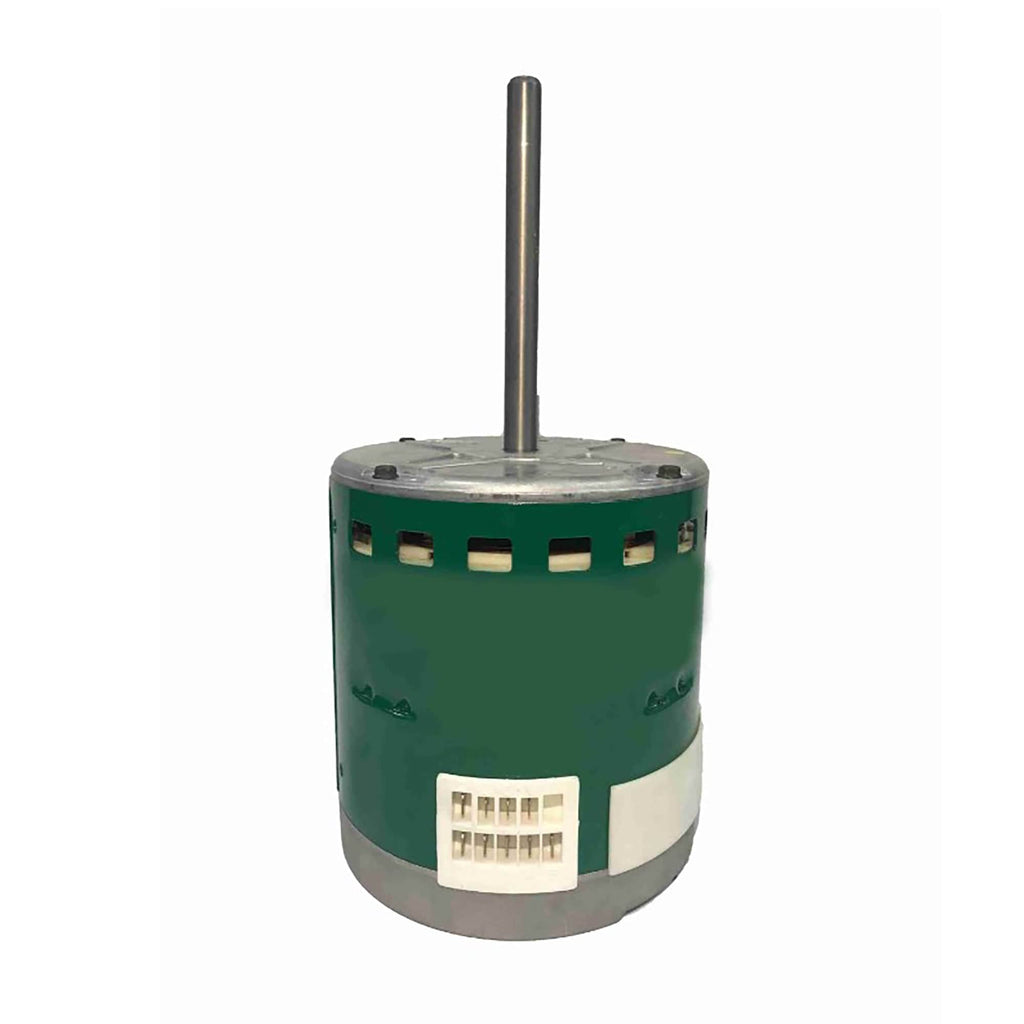

Genteq EVERGREEN EM Fan and Blower Motor, 1/2 HP, 1 Ph, 60 Hz, 115/208-230 V, 1050 RPM, 1 Speed, 48 Frame, OPAO - 6205X
Evergreen EM - Dual Voltage Constant Torque ECM Replacement Blower Motor
Pre-Programmed at the factor * Ready to use out of the box * Increase first time completion * Rotation sensing technology
5.6" Diameter - 48 Frame, Electronically Commutated (ECM), Electronically Protected
Up to five constant torque settings controlled by 24 VAC inputs
Fully variable (PWM compatible) from 600-1100 RPM
Open Air Over, Class B Insulation, 55°C Ambient
Ball Bearing
Shaft: Single, 1/2” diameter, 5” length, 4.5” single flat
42" Leads
Belly Band Mount (Belly Band Not Included)
Phase: 1 Output HP: 1/2 Hp
Output KW: 0.37 kW Voltage: 115/208-230 V
Speed: 1050 rpm Service Factor: 1
Frame: 48 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 6.4/4.1 A
Duty: Continuous Air Over Insulation Class: B
UL: No CSA: N
CE: N Number of Speeds: 1
