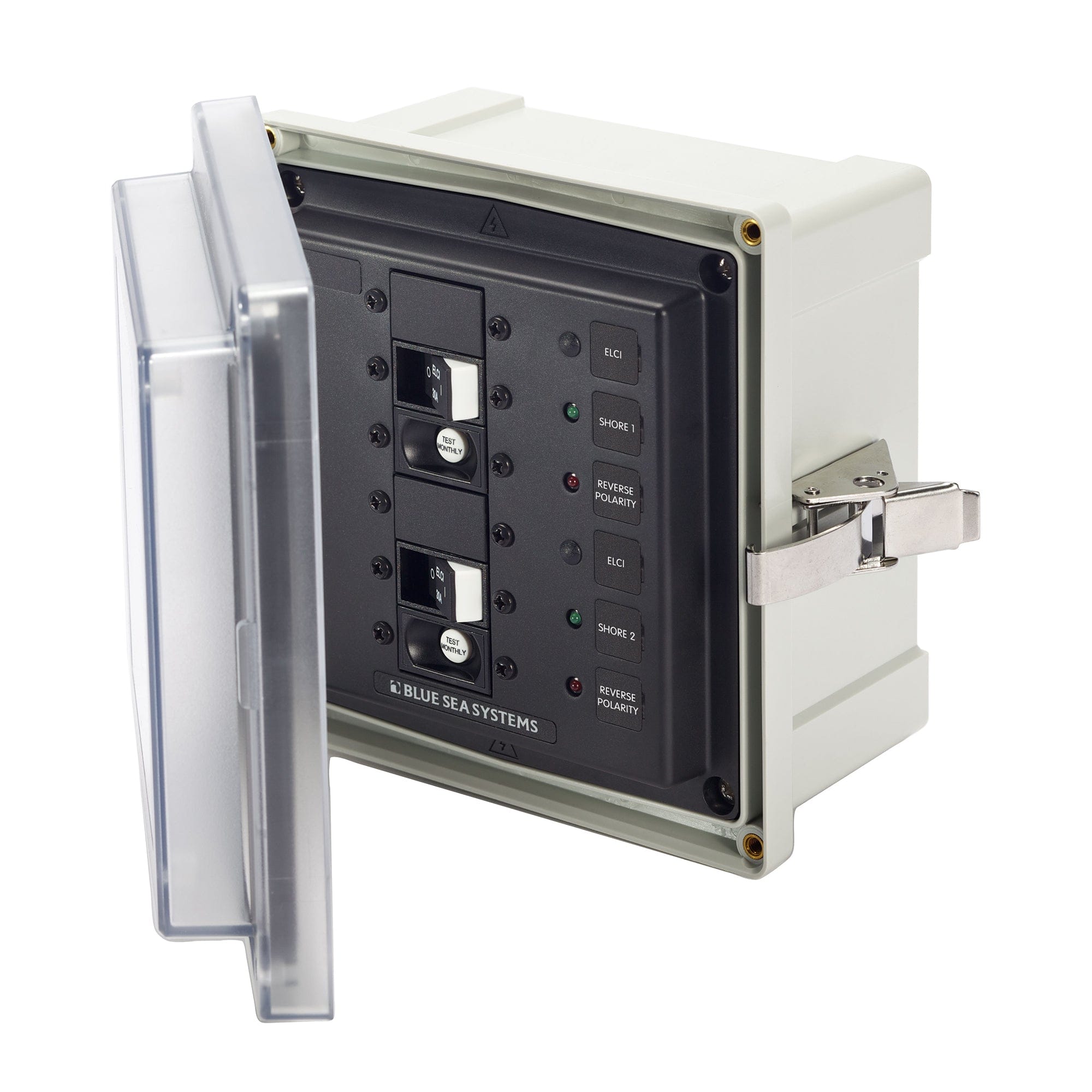

SMS Surface Mount System AC Circuit Breaker Panel Enclosure - 2 x 120V AC / 30A ELCI Main 3117
- Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
- Includes one Dual 120V AC / 30A ELCI Main
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
Minimum Operating Temperature: -35 C
Maximum Operating Temperature: 66 C
Cover Screws and Hardware: 10-32 Stainless Steel
Enclosure Size: 6.0 x 6.0 x 4.0 in. (152mm x 152mm x 102mm)
Exterior Overall Dimensions: 7.6 x 7.4 x 4.7 in. (192mm x 188mm x 120mm)
Mounting Hardware: 1/4 in. Diameter, #12 (6 mm)
Weight: 7.00lb (3.18 kg)
