Description

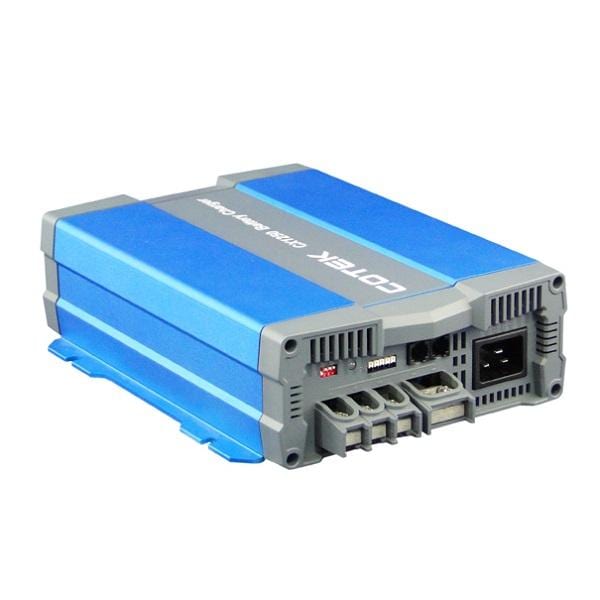

The Cotek CX1250 is a high performance, high efficiency, 12 volt, 50 amp, 4 stage, automatic battery charger and power supply that can be used in marine, RV and off grid applications.
Specifications
| ac current | 8.24 A / 100VAC 3.6A / 240VAC |
| amps | 50 Amps |
| banks | Duel Bank |
| current range | 0 ~ 50A |
| dimensions | 8.4H x 3.0L x 10.7W inches; 213 x 76.5 x 272 mm |
| efficiency | At 230VAC: 87% |
| frequency | 47 ~ 63Hz |
| input voltage range | 90 ~ 264VAC |
| leakage current | For earth < 1mA / 240VAC |
| main output | 3 |
| main rated current | 50A |
| output voltage | 12 Volts |
| over/under voltage | 17.5V 1%, Protection type: Shut down output (recovery after resetting AC power on) |
| power factor | PF > 0.92 at full load |
| single output current limit | 40A |
| stages | 4 Stage |
| standard boost charge voltage | 14.4V / 14.7V (Select by S1-1) |
| standard float charge voltage | 13.8V / 13.5V (Select by S1-2) |
| weight | 6.8 lbs. ; 3.1kg. |
