Description

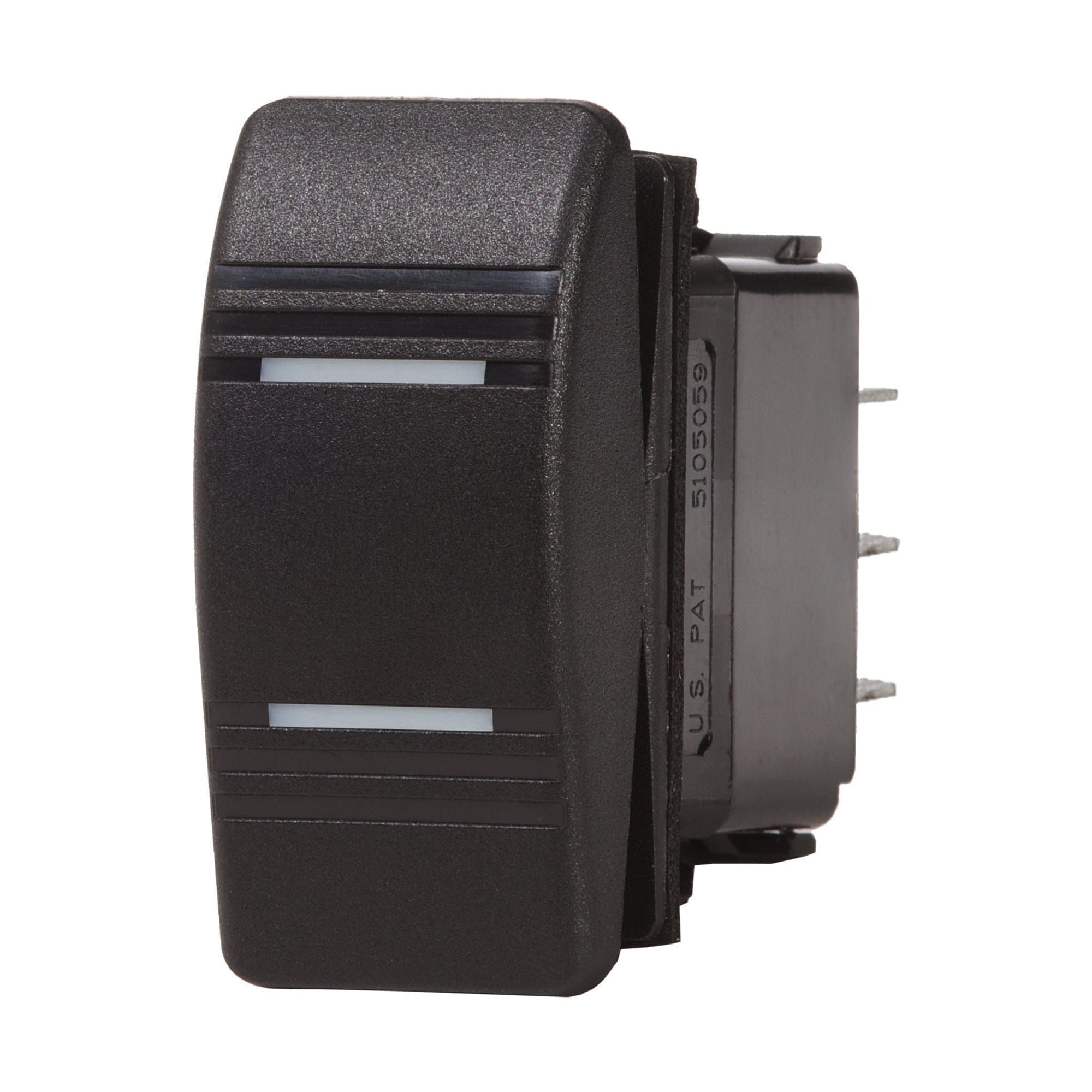

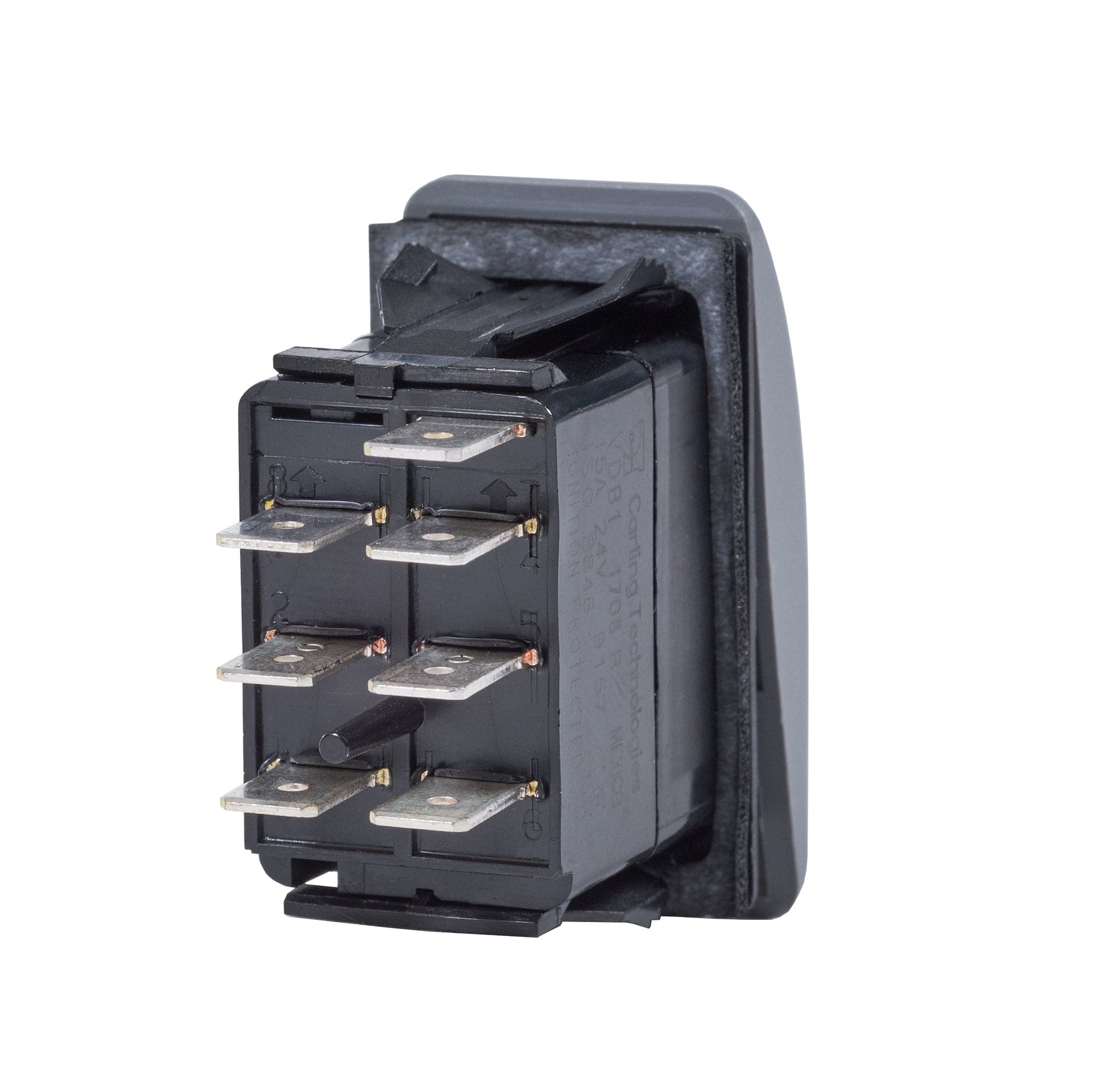

This is the 8300 Contura Switch from Blue Sea Systems.
- Vibration, shock, thermoshock, moisture and salt spray resistant
- Specially manufactured for mounting in Blue Sea Systems" water resistant panels
- Ignition Protected - Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
California Proposition 65: WARNING Cancer. www.P65Warnings.ca.gov
Specifications
| Action | ON-ON |
| Actuator Color | Black - Contura III |
| Actuator Position to Light LED | ON |
| Amperage Operating Current | 18mA (LED) |
| Dimensions (LxWxH) | 4 x 3 x 2 inches |
| Embedded LEDs | 2 |
| Lighting | LED rated 100,000 hours half-life |
| Maximum Amperage | 20A @ 12V 15A @ 24V |
| Maximum Operating Temperature | 85° C |
| Minimum Operating Temperature | -40° C |
| Seals | Internal and external gasket |
