Description

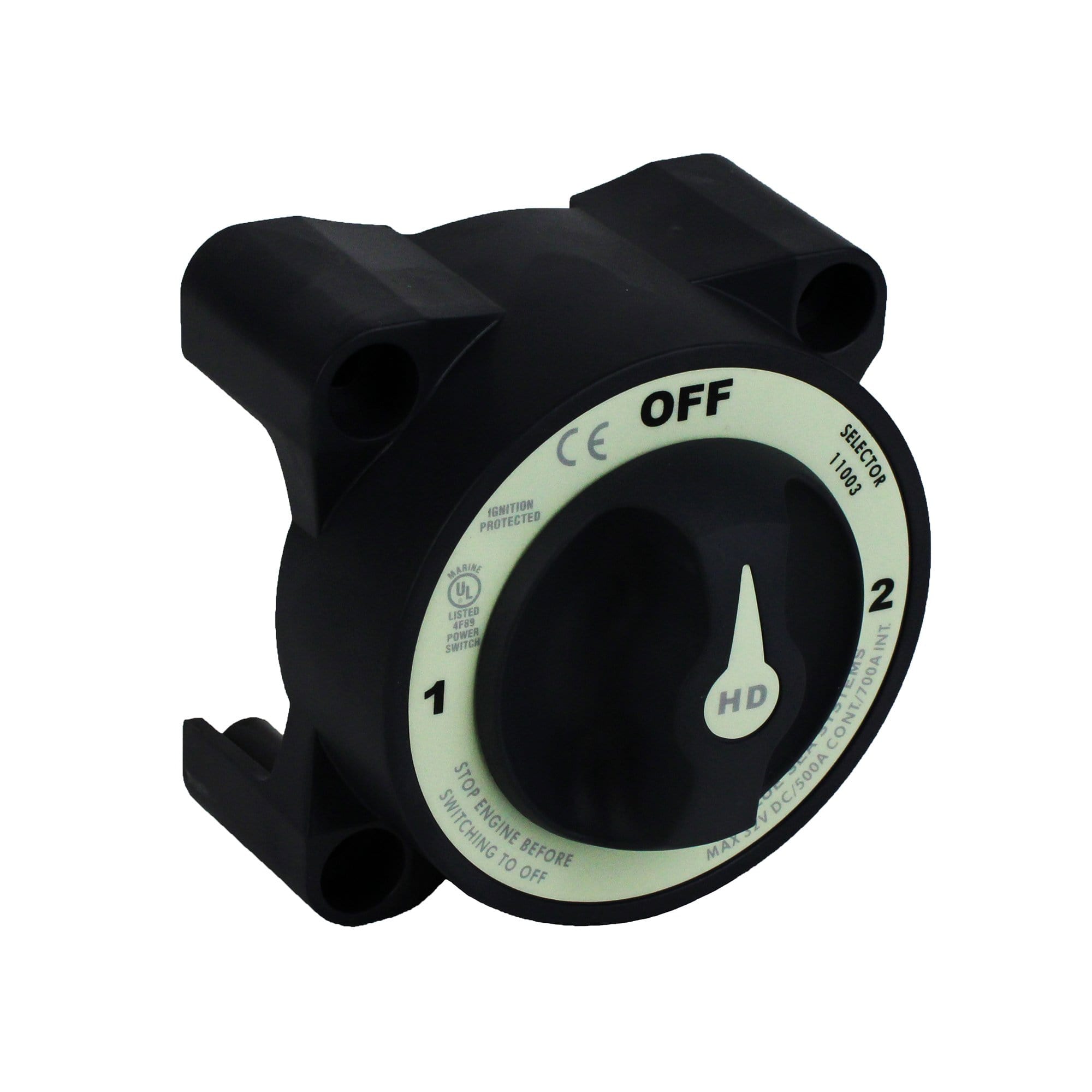

This is a battery selector switch that switches isolated battery banks to all loads.
- Includes AFD (Alternator Field Disconnect)
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm²) battery cables
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Alternator Field Disconnect | Yes |
| Battery Combine | No |
| Battery Inputs | 2 |
| Cable Clearance | For 4/0 AWG Cables: 1.10in (27.94 mm) |
| Cable Quantity | to Meet Ratings: Two Cables / Terminal |
| Cable Size | to Meet Ratings: 4/0 AWG (120mm²) |
| Continuous Rating | 500A |
| Cranking Rating (30 sec) | 1600A |
| Intermittent Rating | 700A (5 min) |
| Maximum Voltage | 32V DC |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Stud Material | Tinned Copper |
| Switch Positions | 3 |
| Switch Type | Selector 3 Position |
| Terminal Stud Size | 1/2" (M12) |
| Terminal Stud Torque | 220 in-lb (24.86 Nm) |
