Description

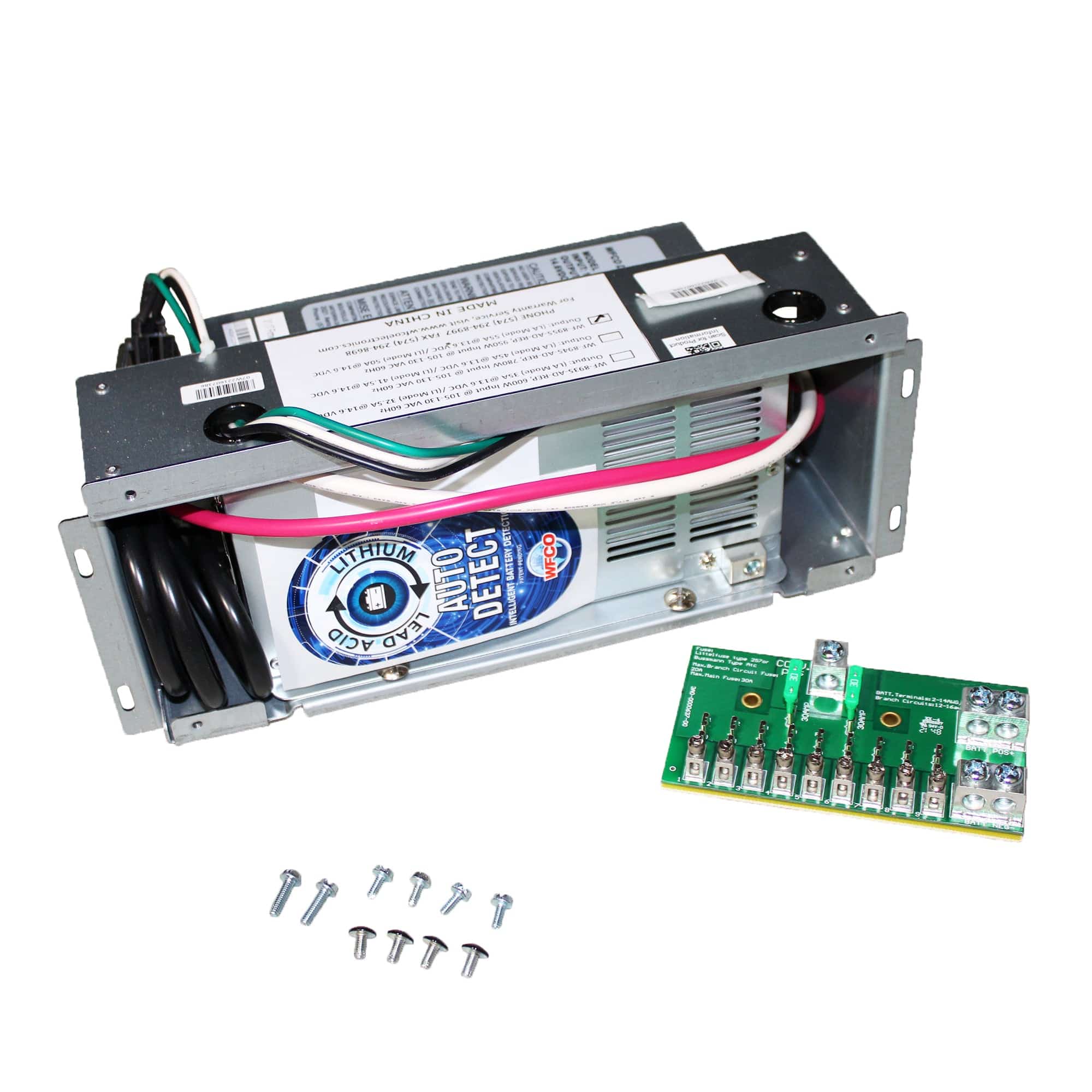

WF-8935-REP Universal Replacement Kit W/ 9835 Deckmount Converter - 35 Amp DC By Arterra Distribution / WFCO
Specifications
| absorption voltage | (Nominal) 13.6V DC |
| bulk charge voltage | 14.4V DC |
| converter type | Three-stage converter charger |
| cooling system | Yes |
| dimensions | 12˝ wide; 4.75˝ high; 7.65˝ deep Kit size (with converter mounted in bracket) |
| float charge voltage | (Trickle charge) 13.2V DC |
| input voltage | 105-130 VAC, 60 Hz |
| output current | 35A |
| output power | 600W |
| output voltage | 13.2 ΓÇô 14.4V DC Range |
| over current | Yes |
| over temperature | Yes |
| over voltage | Yes |
| reverse polarity | Yes |
| short circuit | Yes |
