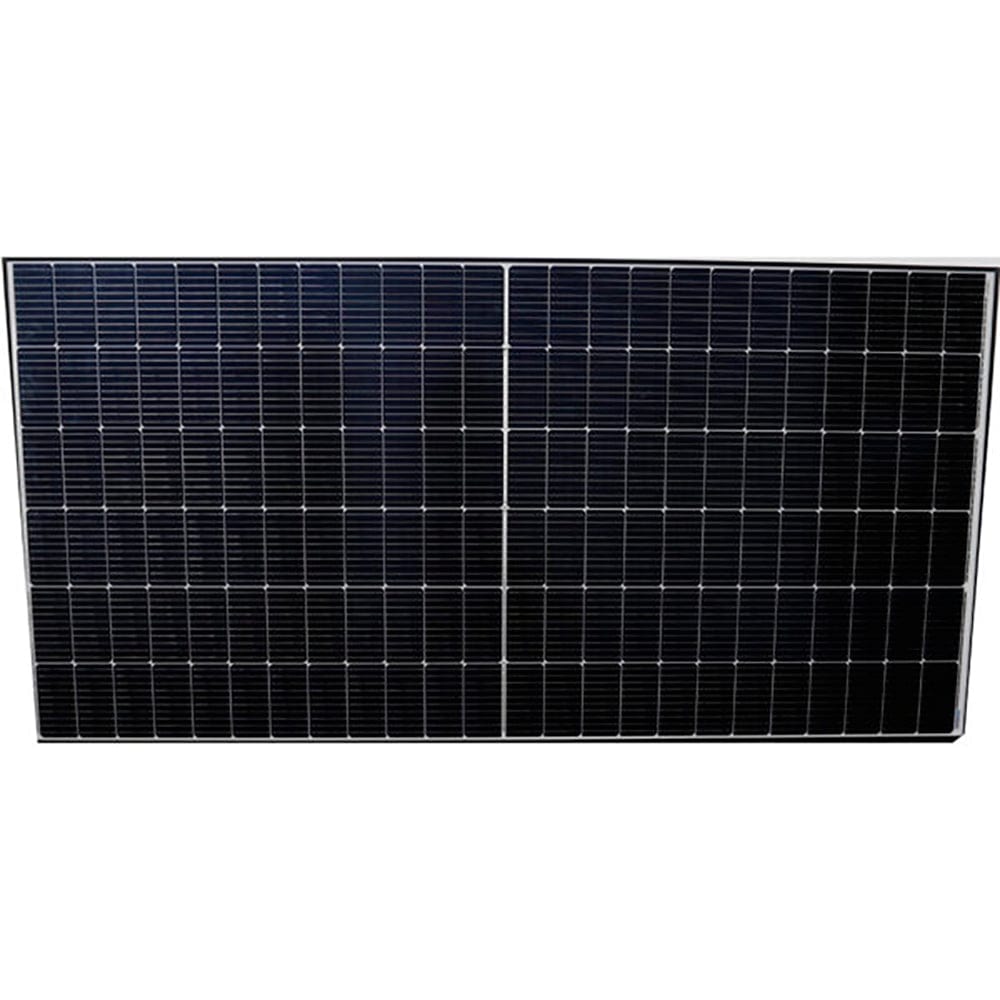

555 Watt Solar Panel Monocrystalline - 21 Pack
The 555 Watt Monocrystalline Solar Panel from AIMS Power is a versatile performer constructed with tempered glass and a stronger surface to protect from harsh weather conditions. The solar cells used in the panel provide high light transmission and the textured glass allows for more efficient power solar harvesting. The panel also includes a bypass diode that minimizes the power drop caused by shade. Easy to install using the pre-drilled holes on the aluminum outer frame. Perfect for home, business and industrial applications for back up or off grid power. You can also use to tie to the grid or with our hybrid inverters. Packed with power. Includes 12? cable with female and male MC4 compatible connectors.
Monocrystalline efficient solar harvesting
Strong surface for harsh environment
Panels capable of 0 to +3 Watts over rated capacity
Pre-drilled aluminum frame
Tempered glass
25 Year limited warranty from manufacturer
Maximum Power (Watts): 555 watts
(Vmp): 42.11 volts operating voltage
(Imp): 13.18 amps operating current
(Voc):50.02 volts open circuit voltage
(Isc): 14.07 amps
Number of Cells (pcs): 6*24 = 144
Front Glass Thickness (mm): 3.2 mm
Temperature Coefficients of Isc (%) °C: -0.048
Temperature Coefficients of Voc (%) °C: -0.29
Temperature Coefficients of Pm (%) °C: -0.37
Temperature Range: -40°C to +85°C
Tolerance Wattage: 0-3 watts
Surface Maximum Load Capacity: 6000Pa snow and 3600Pa wind
Allowable Hail Load: 45mm at 30.7m/s
Bypass Diode Rating (A): 10
Cell Efficiency (%): 22%
Module Efficiency (%): 21.5%
Warranty: 91.2% of 12 years, 80.6% of 25 years
Weight Per Panel (lbs): 60 lbs
Dimensions (inches): 89.75 x 44.75 x 1.37
