Description

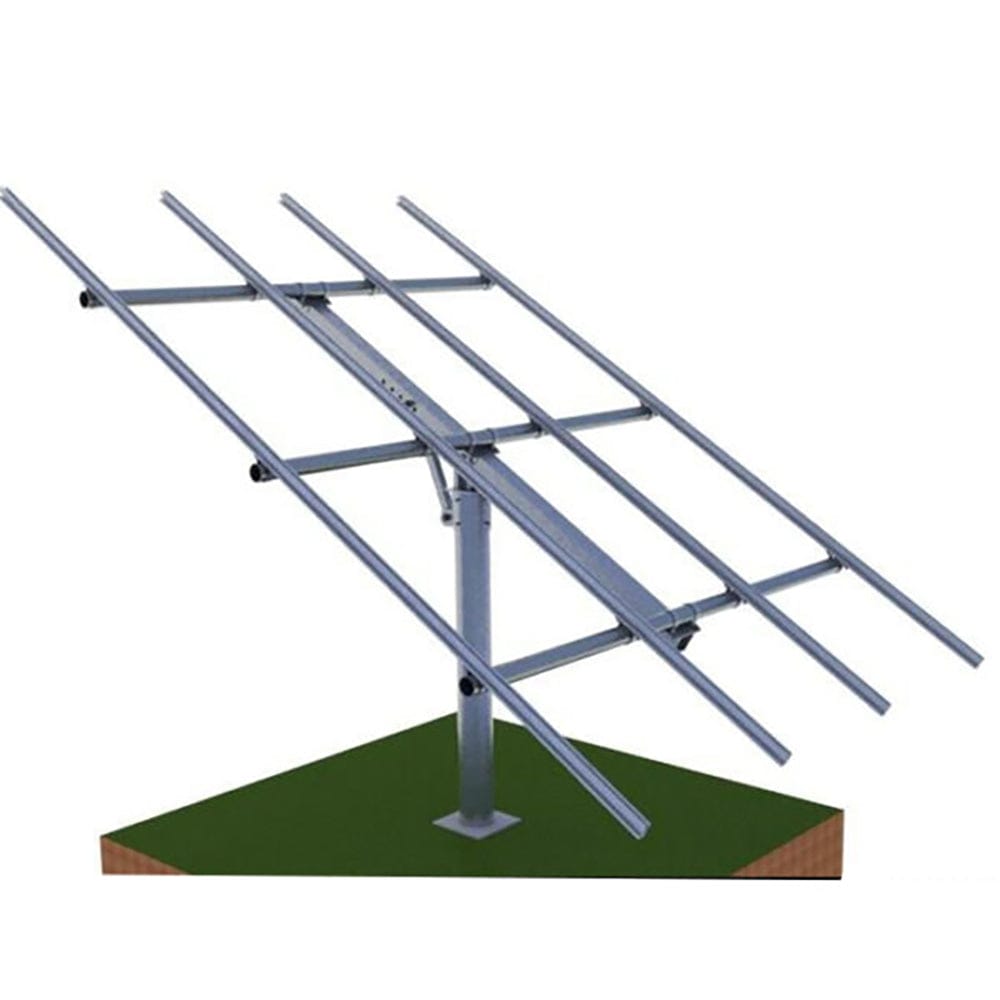

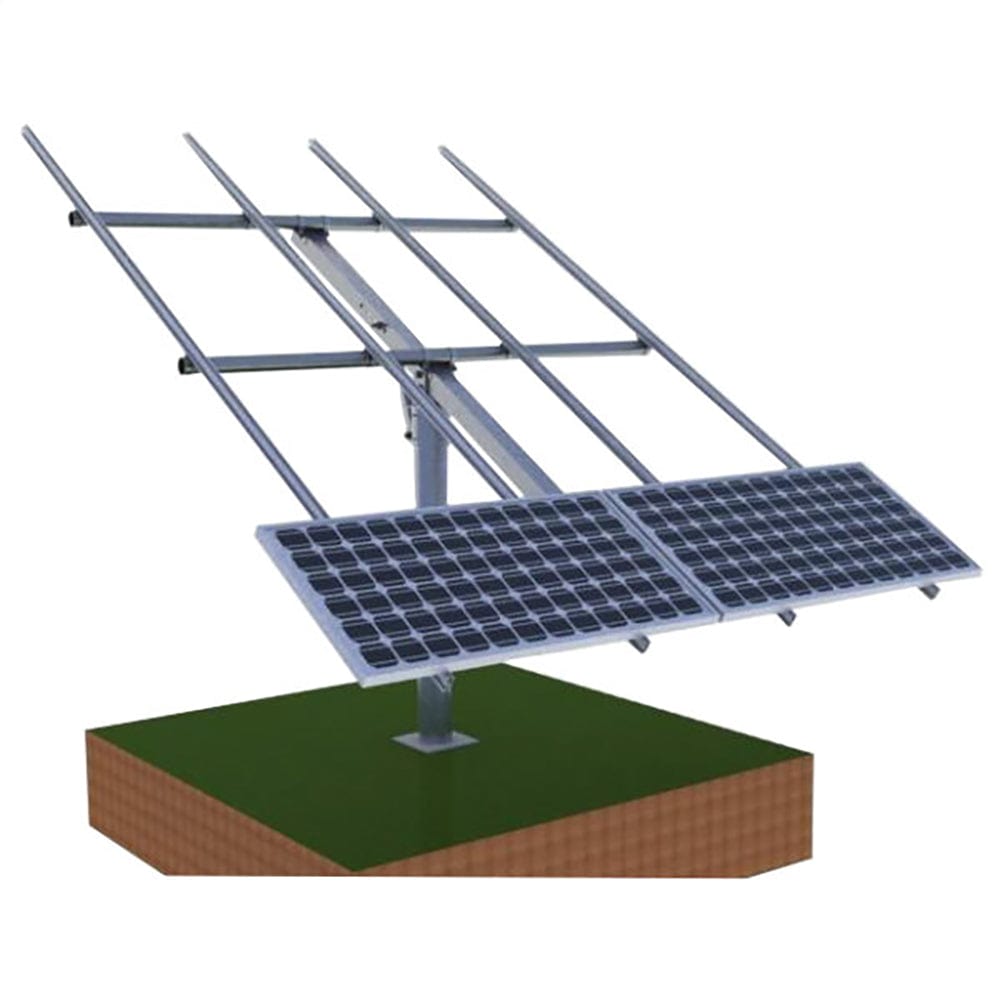

The AIMS Power Heavy Duty Solar Single Pole Mount Rack is made for the avid solar system seeker. Holding up to 6 large PV solar panels (up to 2.0 KW). This system can hold more panels depending on panel size. The heavy duty single pole rack is made of high quality, structural grade, corrosion resistant steel. The aluminum clamps and HD rails along with the stainless steel hooks and hardware provide the most durable single pole rack system on the market. This system includes everything needed for installation, except the actual concrete foundation to anchor the pole. The single pole mount installs quickly using special splicing kits, easy to use clamps and universal HD sliding rails. The rack can hold up to large 6 panels (265 watts and larger) and adjusts to four different degree angles. Changing the pole mount’s angle is easy using the convenient U bolt and pitman arm.
*Please allow three extra days to prep the custom crate for this product.
Everything included except the concrete foundation
Easy installation
Modular
Little measuring needed
No drilling needed
Pre-drilled holes for seasonal adjustments
Universal HD sliding rails for easy solar panel mounting
Convenient easy to use mounting clamps
Beams and pole conform to ASTM A36
Rails use 6000 series aluminum
Stainless steel hardware
Withstands wind speeds up to 102 mph
Rust/corrosion resistant materials
Seasonal elevation adjustment
Four pitch degrees
15 Year manufacturer defect warranty from manufacturer
Application:
Residential
Farms
Commercial
Open areas
Materials:
Galvanized steel ASTM A36
Stainless steel
Aluminum
Tilt angles - 10°, 20°, 30°, 40°
Panel orientation - Portrait. Panel types: PV 60, 72 & 96 cell (all brands)
Wind tolerance - 102 mph
Snow load - 80 PSF *depends on characteristics of snow - standard
Requires concrete foundation 63? sq by 24? deep
Certifications TUV GB50009-2001 GB50011-2001 GB/T 13912-92 GBT 14846-2008 GB-T 6892-2006 GB50429-2007 GB50017-2003 AS NZS 1170 ASCE/SEI 7-05 ASCE/SEI 7-010 2007 California Administrative Code IBC 2006 Euro Code 8 DIN1055 EN 1991-1-3 – Snow Load EN 1991-1-4 – Wind Actions
***This system can handle more than 6 panels depending on panel size. The rails and poles are 126? long. The max is 6 large panels (265 watts or larger).
