Description

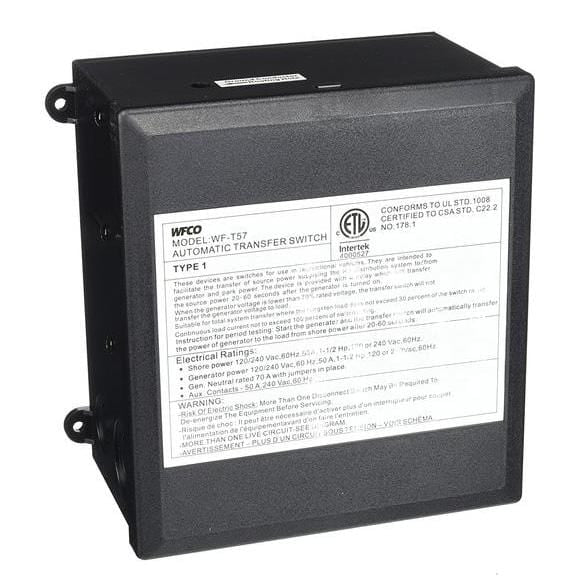

The T-57 is a 50-Amp Automatic Transfer Switch from WFCO. It helps power changeover between shore power and generator. The T-57 is used for a 30 Amp or 50 Amp AC service and mounts easily to any flat surface.
Features:
- Easily mounted to flat surfaces
- Safe and reliable performance
- Fits in compact areas
- Input Voltage: 120/240 VAC, 60 Hz
Specifications
| ac rating | 120/240 volts / 50 amps |
| brand | WFCO |
| Certifications | Certified to CSA STD. C22.2, Conforms to UL STD. 1008, ETL Listed, FCC Class B compliant |
| Input Current | 50 A |
| Knockout Hole Sizes | 1 x 1-1/4˝, 4 x 1/2˝, 5 x 3/4˝ |
| Knockout Holes | 10 |
| Output Current | 50 A |
| Outside Dimensions | 8.25˝ wide; 9.25˝ high; 5.125˝ deep |
| Voltage Output | 120/240 VAC, 60 Hz |
