Description

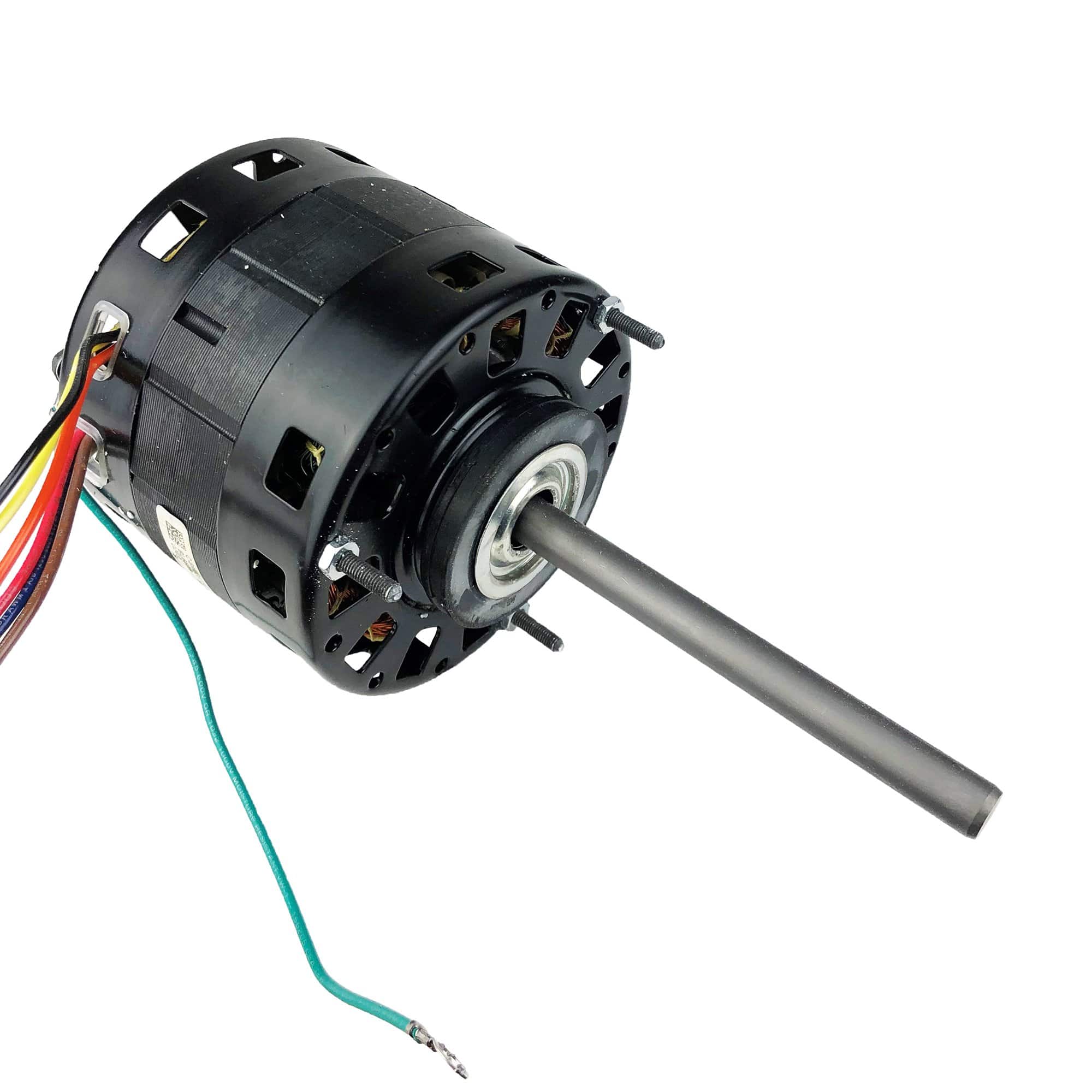

This is an HVAC direct drive blower motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 34.5" Leads
- Extended Studs Shaft End, Resilient Ring Mounting, Belly Band
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
Ambient Temp. | 40 Degrees Celsius |
Amps | 3.2A, 2.1A, 1.7A |
Bearings | Sleeve |
Brand | Century |
Certifications | UL, CSA |
Country of Origin | Mexico |
Diameter (in.) | 4-7/8" |
Enclosure | Open |
H.P. | 1/5, 1/8, 1/10 |
Hertz | 60 Hz |
Insulation Class | B |
Length Less Shaft (in.) | 3-7/8" |
Material | Rolled Steel |
Motor Type | PSC |
Mounting Option | Resilient Rings |
NEMA Frame | 42Y |
Overload Protection | Automatic |
Phase | Single |
Rotation | Reversible |
RPM | 1075 |
Service Factor | 1.00 |
Shaft Dimensions (in.) | Dia x Lgth: 1/2 x 5-1/2 |
Speeds | 3 |
Voltage | 115 V |
