Description
DISCONTINUED

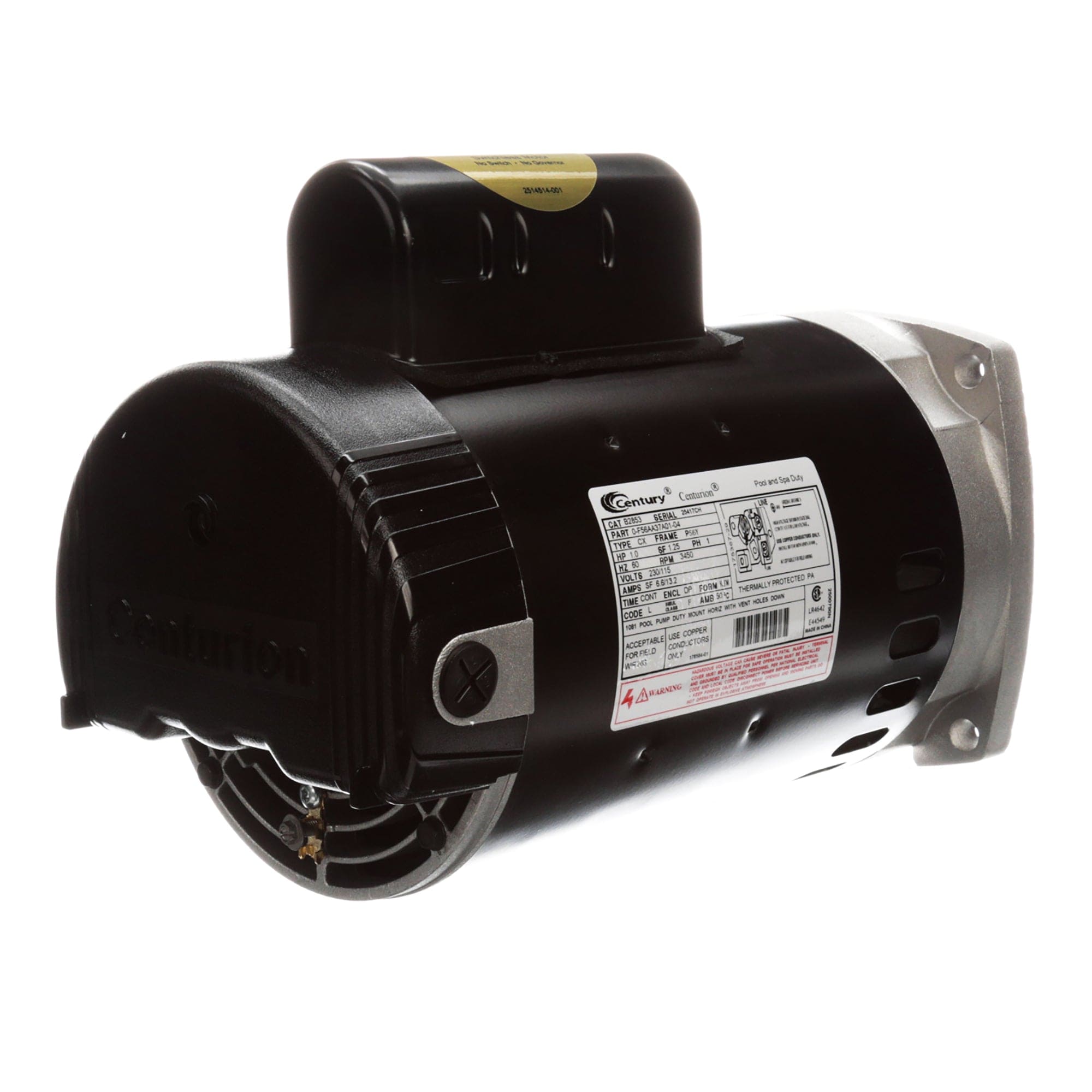

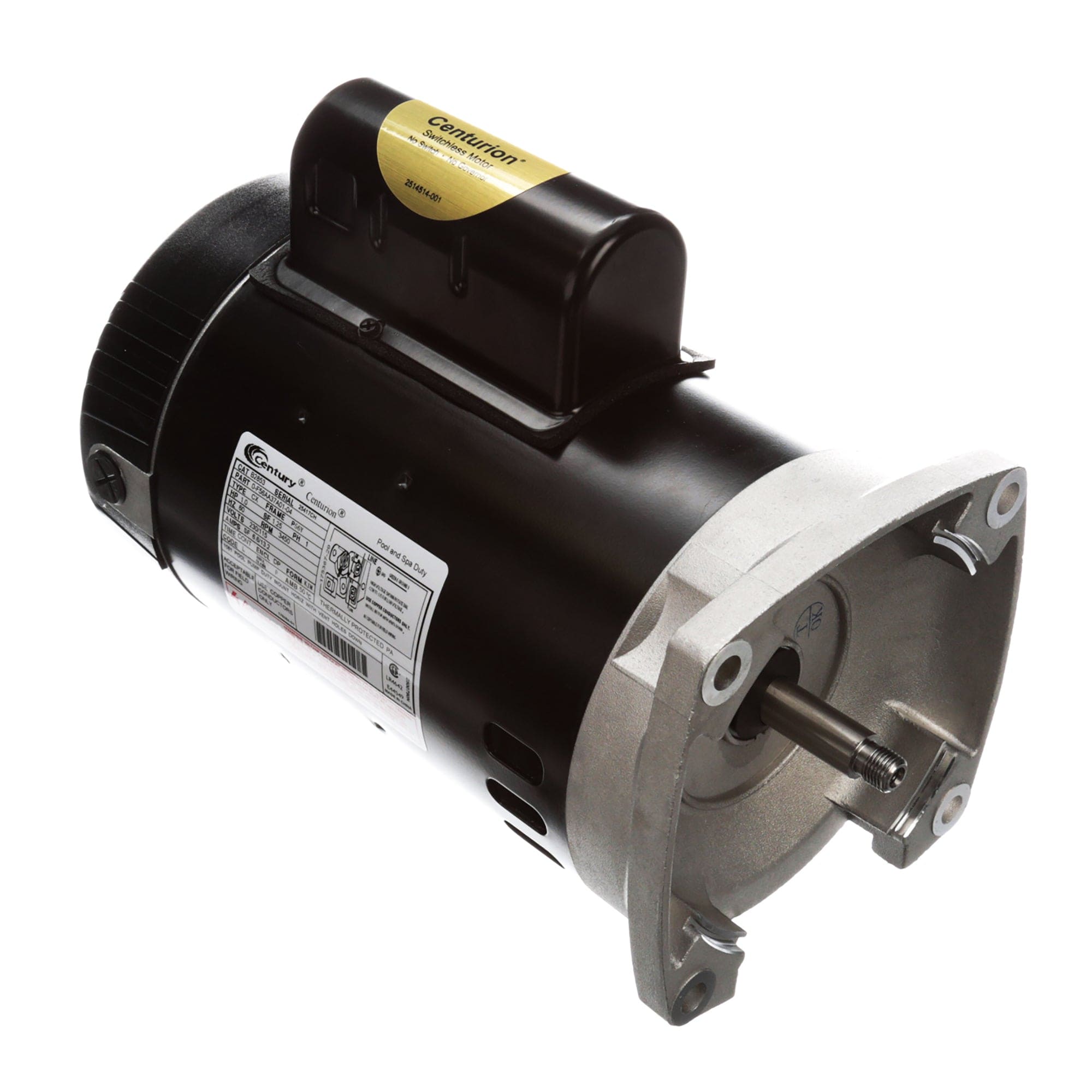

This is a Centurion Pool and Spa Pump Motor Square Flange 230/115V 3450 RPM 3/4 HP from Packard.
- Sealed Ball Bearings
- 50°C Ambient
- Stainless Steel Shaft
- Switchless
- UL 1081 Design
- Open Dripproof
- Threaded Shaft
- Permanent Split Capacitor
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Ambient Temp. | 50°C |
| Amps | SF 5.4/10.8 |
| Bearings | Ball |
| Brand | Century |
| Certifications | UL Recognized, CSA |
| Country of Origin | China |
| Diameter (In.) | 6/1/2002 |
| Enclosure | ODP |
| H.P | 4-Mar |
| Hertz | 60 |
| Insulation Class | F |
| Material | Rolled Steel |
| Motor Type | PSC |
| Mounting Option | Round |
| NEMA Frame | 56Y |
| Overload Protection | Thermally Protected |
| Phase | Single |
| Rotation | CWSE |
| RPM | 3450 |
| Service Factor | 1.25 |
| Shaft Dimensions (In.) | 5/8 x .91 |
| Speeds | 1 |
| Voltage | 115/230V |
