Description

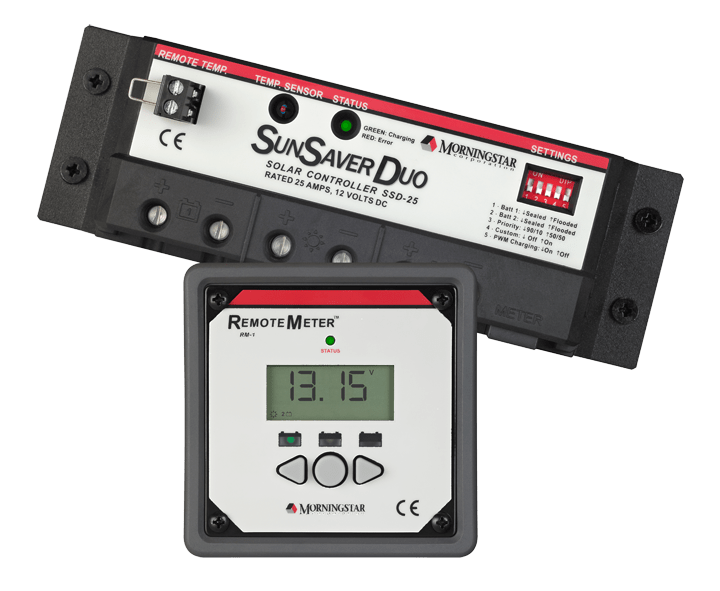

MorningStar SunSaver Duo SSD-25RM 25 Amp 12 Volt Solar Controller. Morningstar's SunSaver Duo SSD-25RM is an advanced PWM two battery controller for RV's, caravans, boats and cottages.
Specifications
| battery voltage | 12V |
| controller dimensions | 6.7" H x 2.2" W x 1.6" D (17 x 5.6 x 4.1 cm) |
| controller weight | 0.57 lbs (260 g) |
| largest wire | 16 mm^2 (#6 AWG) |
| max. solar voltage | 30V |
| maximum battery voltage | 15V |
| meter dimensions | 6.7" H x 2.2" W x 1.6" D (17 x 5.6 x 4.1 cm) |
| meter weight | 0.30 lbs (135 g) |
| meter wire | 33 ft (10 m) |
| minimum battery voltage | 1V |
| rated solar input | 25 amps |
| regulation voltage | 14.1 volts (at 25┬░C, 77┬░F) (Sealed Battery) |
| self consumption | Controller: 6 to 10 milliamps |
