Description

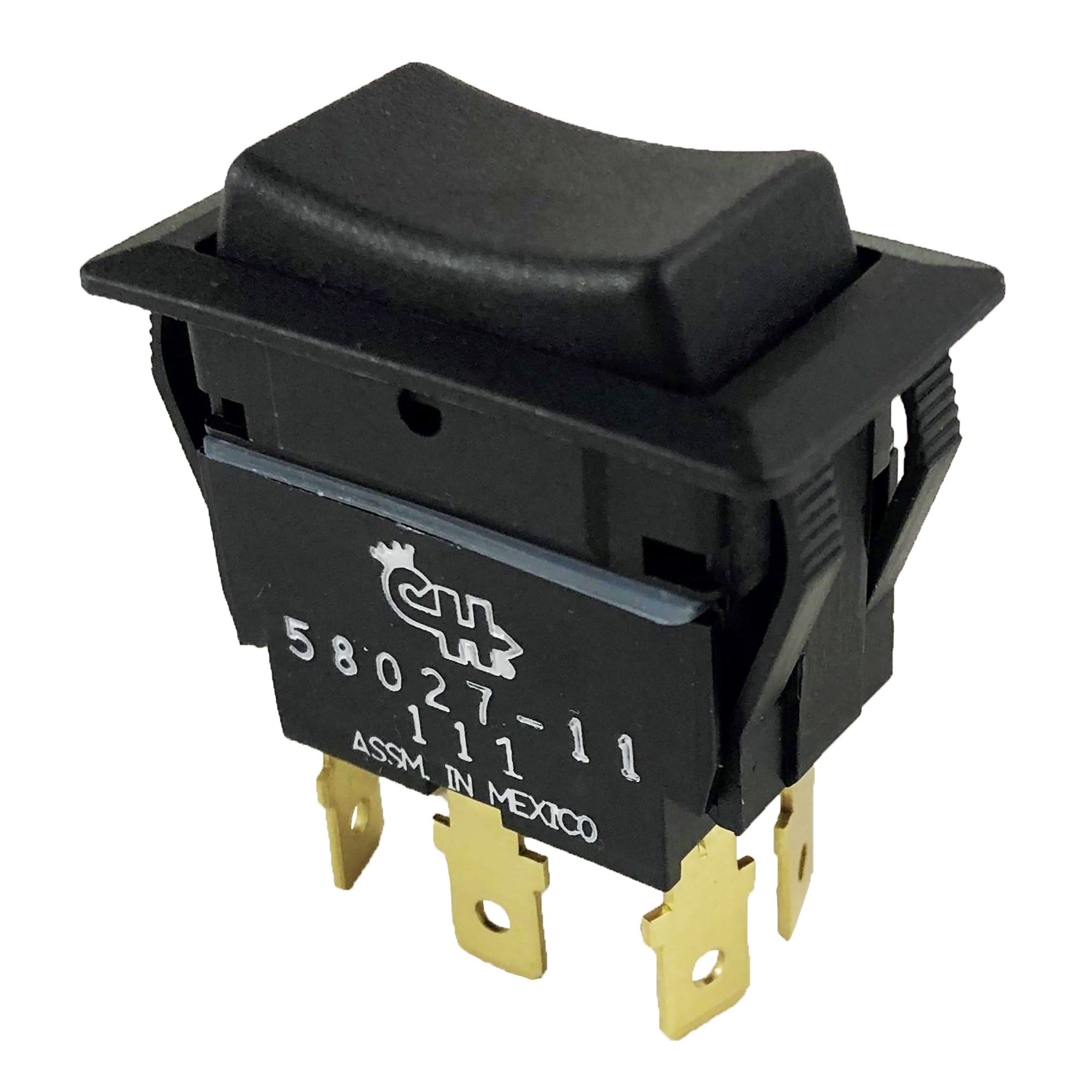

Littelfuse Rocker Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The 58027 Series is our most popular line of unlit rocker switches. These products are single-actuator switches that are commonly used for in-cabin controls, but are IP66 rated against dust and moisture.
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Actuator | Rocker Button |
| Circuitry | DPDT |
| Contact Material | Silver |
| Current Rating (Continuous) | 25A |
| Housing | Black Plastic |
| Ingress Protection | IP66 (Contact Area) |
| Input Terminals | 6 Blade |
| Mounting | Snap-in matte black bezel through 21.1mm x 36.8mm rectangular Panel Hole, 2.4mm to 4.7mm thick |
| Positions | Momentary On (2-1 ; 5-4) - Off - Momentary On (2-3 ; 5-6) |
| Voltage Rating | 25A @ 12V DC and 15A @ 24V DC |
