Description

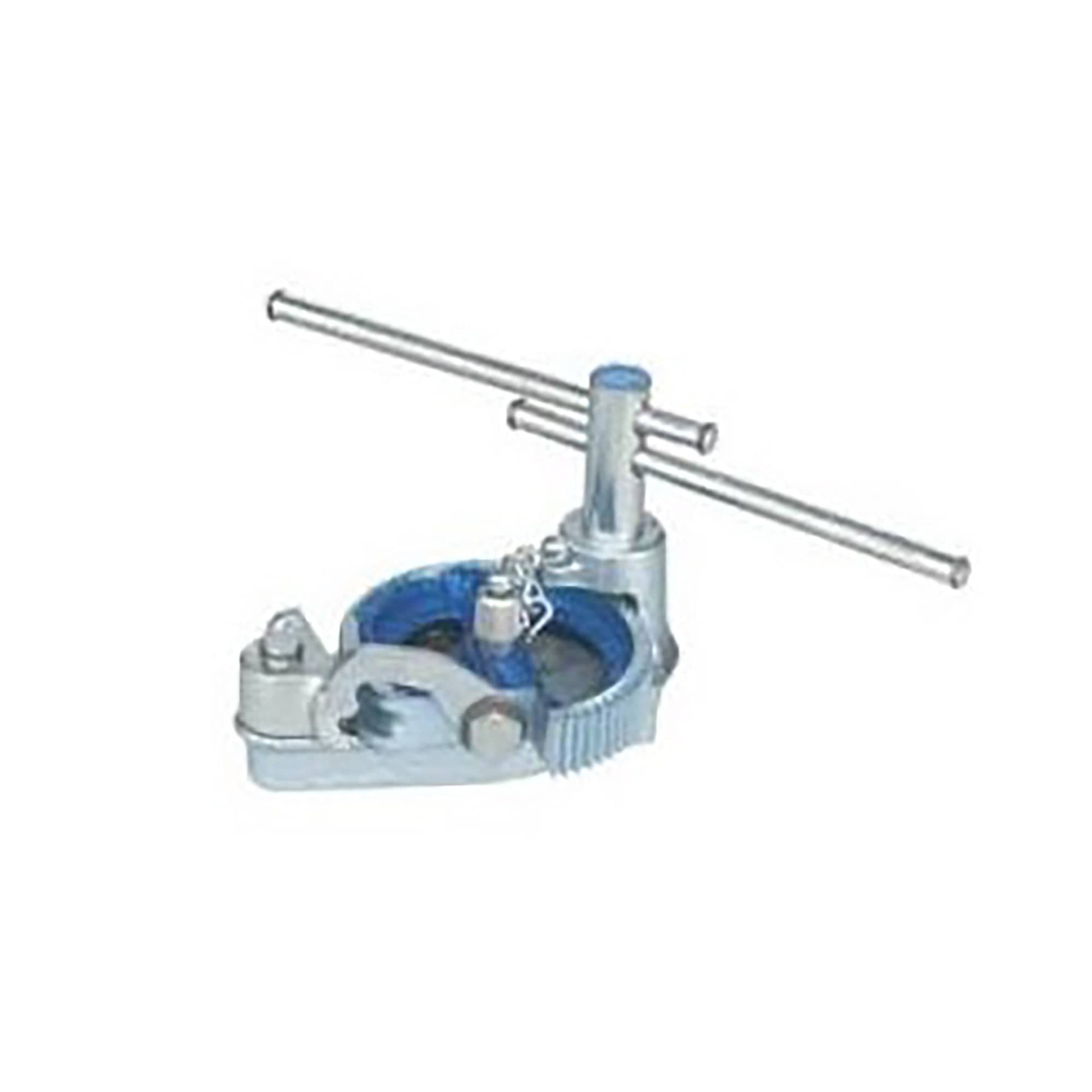

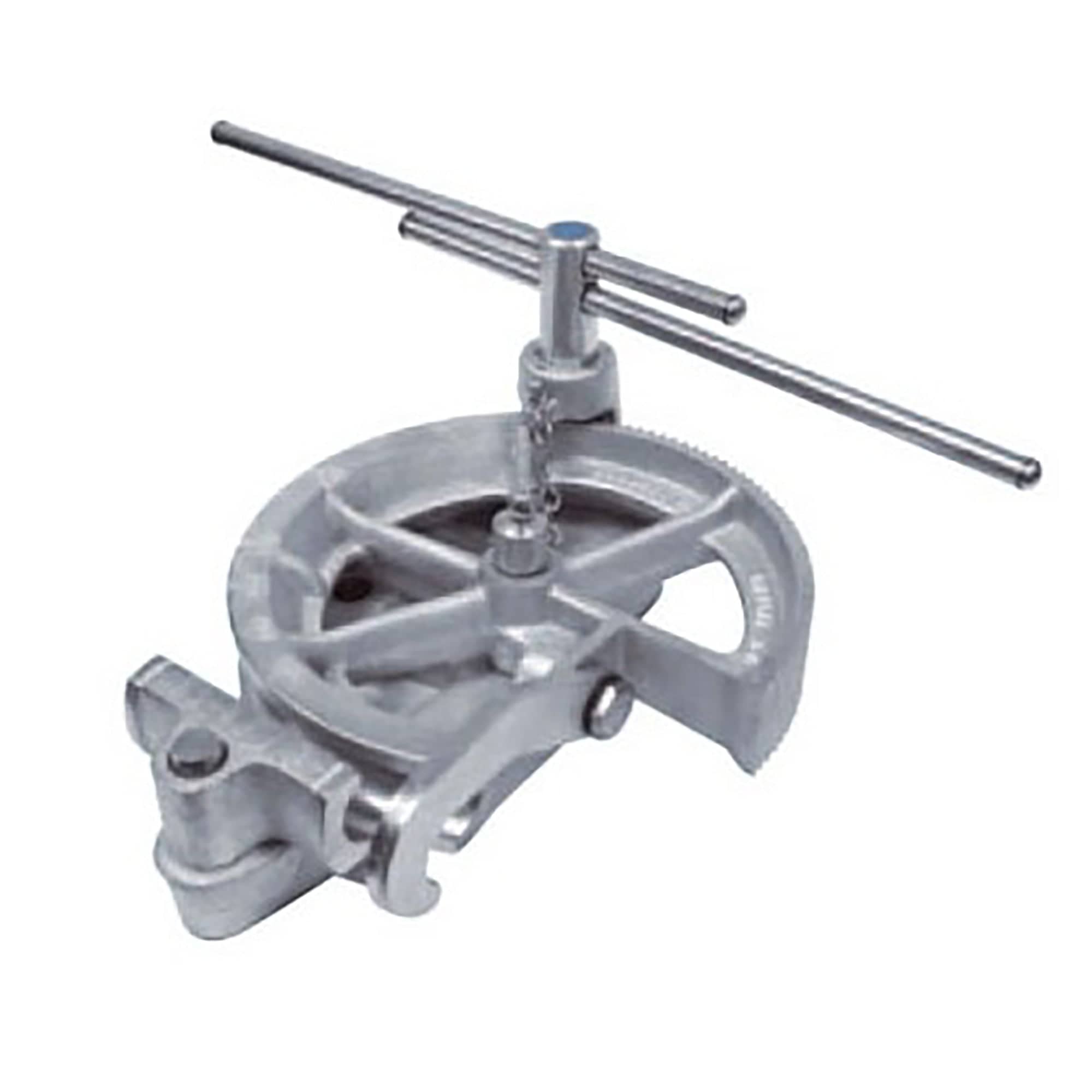

Diversitech 270-F-18 Tube Bender Gear Type 1-1/8" O.D.
For all bending work
Spur-gear type with 10-to-1 ratio for easy bending of tempered tubing
Floating shoe aligns tube perfectly on calibrated forming wheel
Pull-pin on wheel speeds repositioning for bends over 90 Degree Portable
Can be hand held, clamped in vise or bolted to bench
Adapts to pipe vise with handle 271-F
Tube Bender
Type Gear
Capacity 1-1/8 Inch Outer Diameter Tubing
Bending Angle 90 Degree
Bending Radius 4 Inch
Pipe/Tube Material Soft and Hard Copper, Aluminum, Brass, Steel
Minimum Return/Coil Bend from Center to Center of Tubing 9-1/2 Inch
