Description

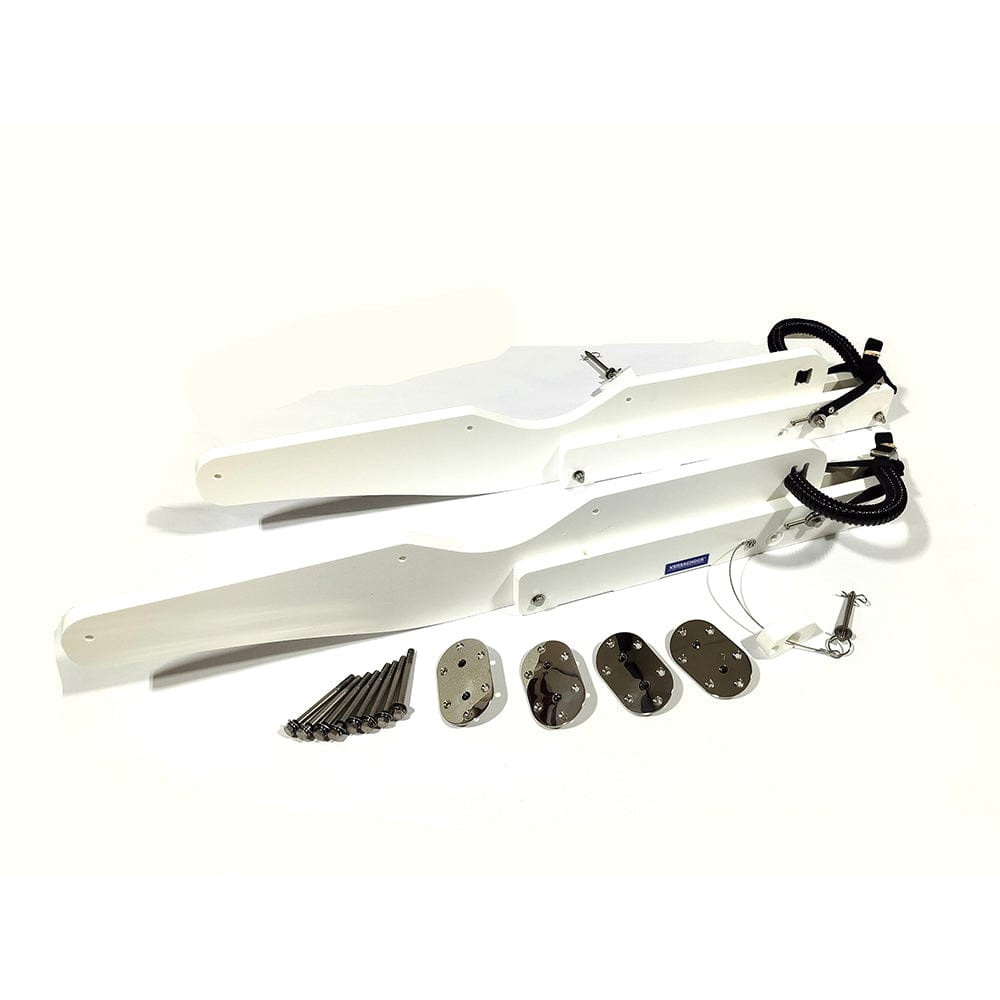

Tilting dinghy davits by VersaChock allow for easy loading of lighter weight dinghies onto swim platforms. Davits are removable by simply removing the bolts from our exclusive, super low-profile threaded deck plates (mini poly wrenches included, which are attached to hitch pin lanyards to prevent dropping them in the water!). Davit arms have an automatic self-latching feature, which locks the arms when rotated down (safety hitch pins must also be installed for securing arms). Limit straps are also included to limit the angle of the arms while loading. Various winch options are offered separately. Also works great with VersaChock’s exclusive blind fastener system (VCBLINDWIDEDBL) when access to backside of mounting surface is not possible! Capacity: 350 lbs (standard platform mounting)/ 25 lbs (narrow platform mounting).Twenty four 1/4" screws required for installation (not included). Dimensions (apx.) - 47" L x 3" W x 7" T.
Removable for a trip-free deck.
Tilts for easy loading and launching.
Capacity: 350 lbs (Standard platform mounting)/ 250 lbs (Narrow platform mounting).
Twenty four 1/4" screws required for installation (not included).
