Description

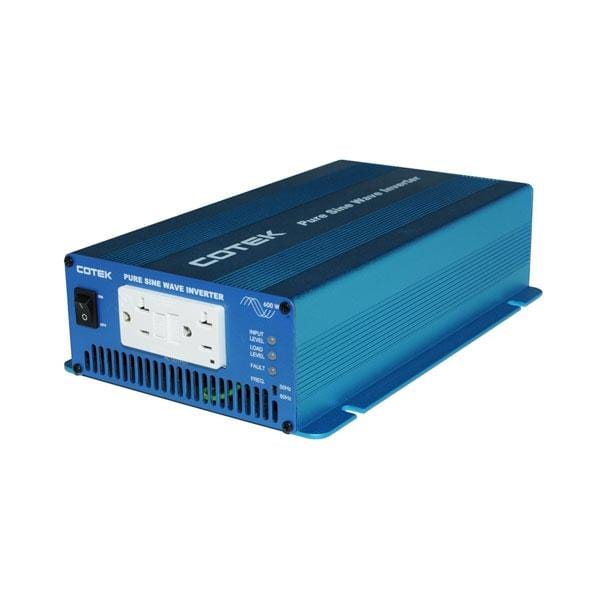

The Cotek S600R-148 is a 48V 600 watt pure sine inverter.
Specifications
| ac regulation | +/- 3% |
| ac voltage | 100 / 110 / 120VAC |
| battery low shutdown | 42.0V +/- .5V |
| battery polarity reverse | By Fuse Open |
| continuous power | 600W |
| cooling | Loading controlled cooling fan |
| dc voltage | 48VDC |
| efficiency | 0.92 |
| emi conduction & radiation | Compliance to FCC class B |
| frequency | 50 / 60 Hz (Switch Selectable) |
| fuse | 10A x 2 |
| isolation resistance | I/P ~ O/P: 100M Ohms / 500VDC |
| led indicator | Input voltage level, output load level and fault status |
| no load current draw | 0.23A |
| output short | Shut off output voltage, re-power on to recover |
| over load | Shut off output voltage, re-power on to recover |
| over temp | Shut off output voltage, auto resets |
| over voltage | 61.2VDC |
| remote control | By external switch |
| safety standards | UL458 (only for ΓÇ£GFCIΓÇ¥ receptacles) |
| standard receptacles | NEMA5-15R / GFCI |
| surge power | 800W |
| voltage range | 42.0~60.0VDC |
| waveform | True sine wave |
