Description

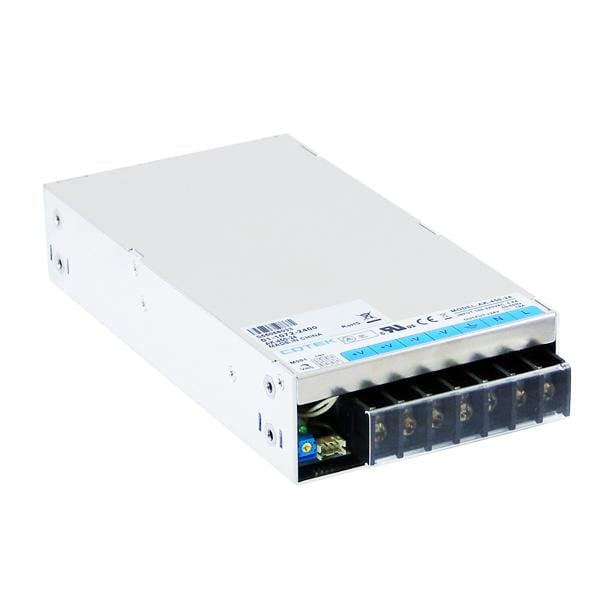

The Cotek AK-450-12 is a 450 watt 37.5 amp 12 volt single output switch mode power supply with a loading and temperature controlled cooling fan. It is designed to install in compact spaces.
Specifications
| auxiliary output | +5v / 3a |
| brand | Cotek |
| current range | 0-37.5 |
| dimensions | 4.1"W x 1.6"H x 7.8"D |
| efficiency | 0.89 |
| frequency | 47hz / 63hz |
| input ac current | 4.0a / 115vac |
| input voltage range | 90v ~ 264vac |
| inrush current | 27a |
| line regulation | +/- 0.5% |
| load regulation | +/- 0.5% |
| max ripple and noise | <1% |
| output voltage | 12 Volts |
| output voltage range | 12v DC |
| rated current | 37.5a |
| rated power | 450w |
| voltage adjustment range | +/-10% |
| voltage tolerance | +/- 1% |
| wattage | 450 Watts |
| weight | 2.4 lbs - 1.1 kg |
