Description
These Jack Plates ship from the manufacturer and are built to order.
Please contact us prior to ordering for an ETA

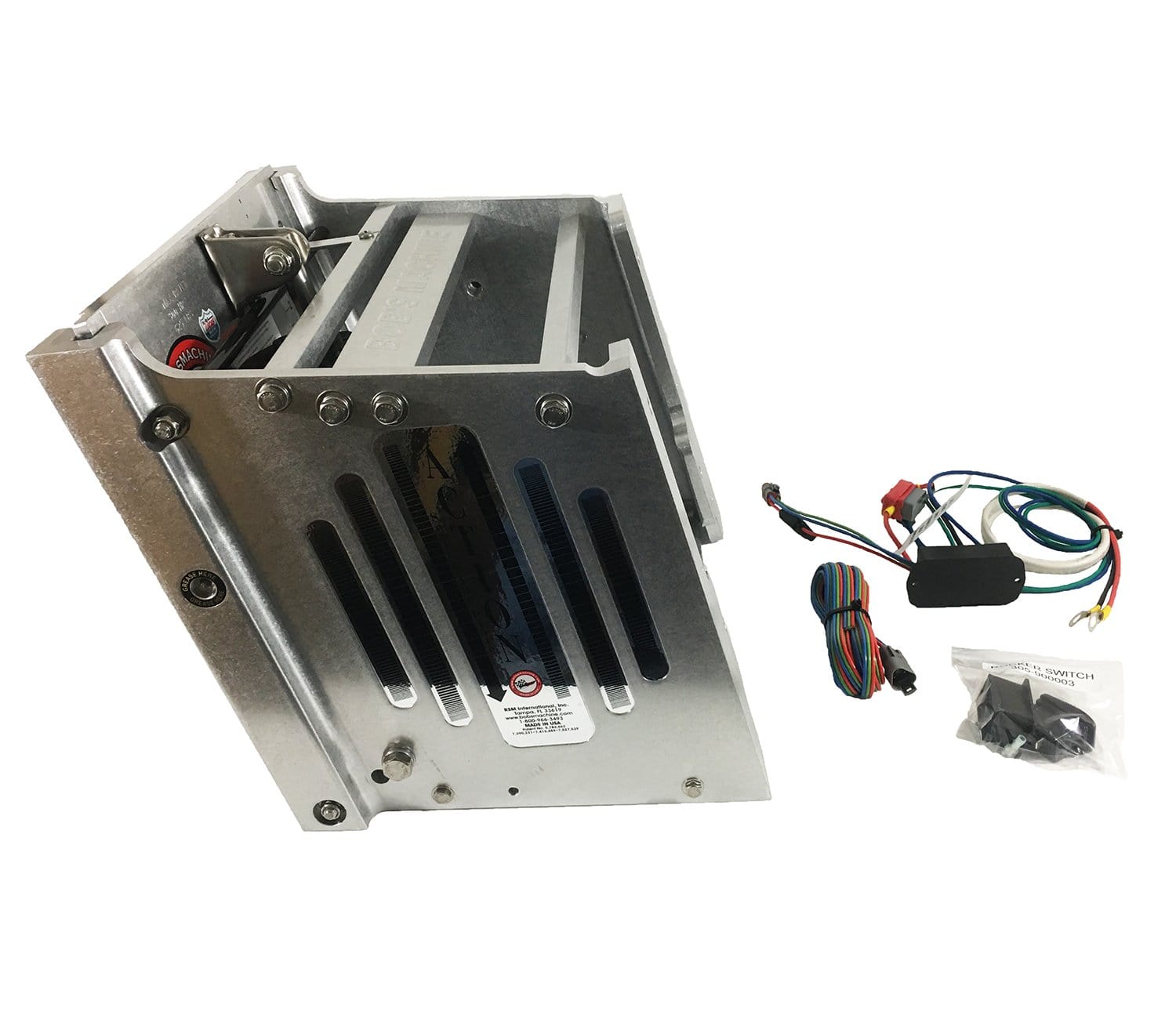

Jack plates are used to improve an outboard boats speed, holeshot, fuel efficiency, and the boater navigate in shallow waters. They intend to keep the least amount of weight on the transom, and by keeping the pump inside the boat, keeps this weight down.
- Internal pump mounted inside plate for easier rigging
- One piece jack plate - No C-Channels to bolt on to increase setback
- Large powerful motor that can lift heavy outboards under full power in 6 seconds
- Can be converted to have pump inside the boat if the owner desires to change style of hydraulic pump
- Provides 7.5” (19 cm) of total lift (6” hydraulic & 1.5” built-in lift)
- Support motors up to a 14.5” mounting width, for wider motors see Extreme series
- Wiring is plug and play with waterproof Deutch® connectors
- US & International Patents Pending
- Automotive grease fittings
- Adjustable tension rods
- Predrilled for side mount shallow water anchors, holes are behind side stickers
- Limited Lifetime Structure Warranty against manufacturing defects
- 3 Year Action Pump Warranty
Specifications:
- Model: 12"
- Plate LBS/Kilos: 64/29
- Max HP/Weight (LBS): 300/625
- Setback (Inches/CM): 12/30
