Description

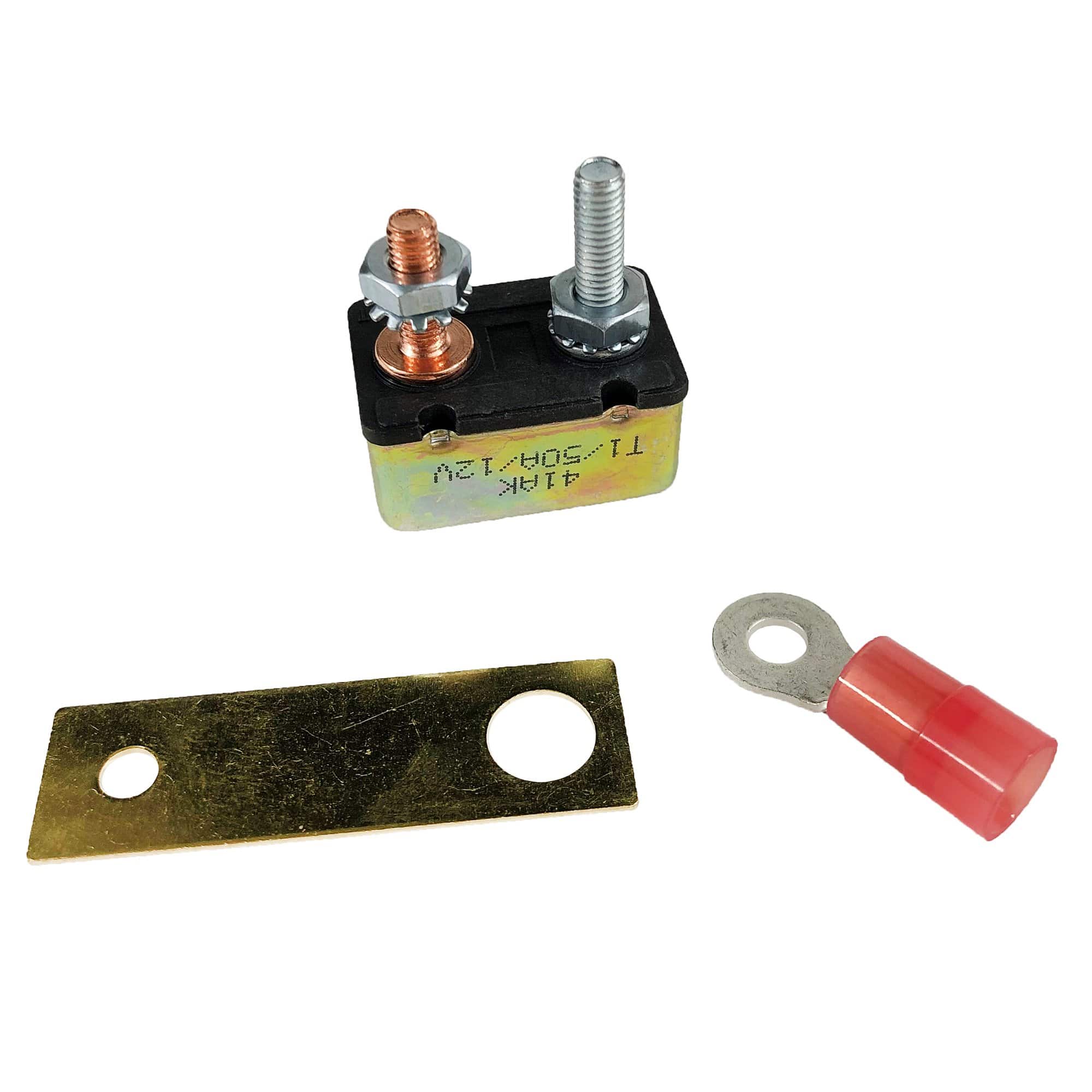

This is a flush mount 50-amp switchable reset circuit breaker
- Typically used in auxiliary and accessory circuits in trucks, buses, RVs, and marine systems
- Sealed for engine compartments and bilge area applications
- Has a unique reset mechanism which provides visible indication of tripped condition
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Amperage | 50A |
| Approvals | Complies with SAE Standard J1625 |
| Material | UL-Rated Thermoplastic |
| Mounting Holes | (2) 0.26" (6.60) diameter |
| Poles | Single |
| Reset Method | Type III – PTT (Push to Trip) |
| Terminals | 1/4”-28 Threaded Studs |
| Voltage | 42V |
