Description

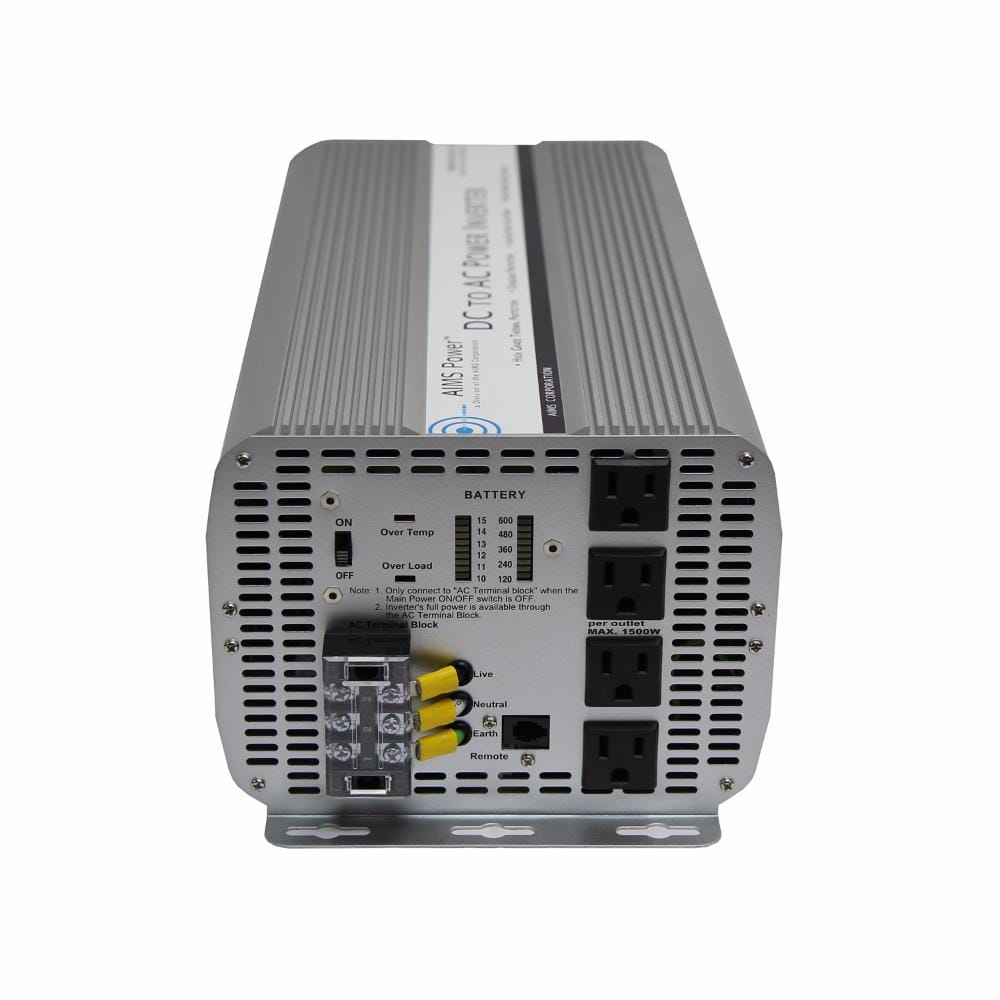

The Aims PWRINV500036W is 5000 watt modified sine wave inverter that converts 36 volts DC power to 120 volts AC power.
Specifications
| 1/3 load efficiency | 0.95 |
| ac output socket type | Quadruple Type 2 -3 Prong |
| battery low voltage shutdown | 28 +/- 0.5 Volts |
| brand | Aims |
| dc input / operating voltage | 30 to 48 Volts |
| dimensions | 17" L x 7.75" W x 6" H |
| full load efficiency | 0.9 |
| high input voltage protection | 48 volts |
| input voltage | 36 Volts |
| low battery alarm | 31 +/- 0.5 Volts |
| low input voltage shutdown | 28 volts |
| maximum operating temperature | 55 +/- 5 degrees Celsius (automatic shutdown) (Full Load) |
| minimum operating temperature | -15 degrees Celsius (No Load) |
| no load current | < 0.9 Amps |
| output frequency | 60 Hz +/- 1 Hz |
| output voltage | 120 Volts |
| surge watts (peak power) | 10000 Watts |
| wattage | 5000 Watts |
| waveform | Modified Sine Wave |
| weight | 18 lbs |
