Description

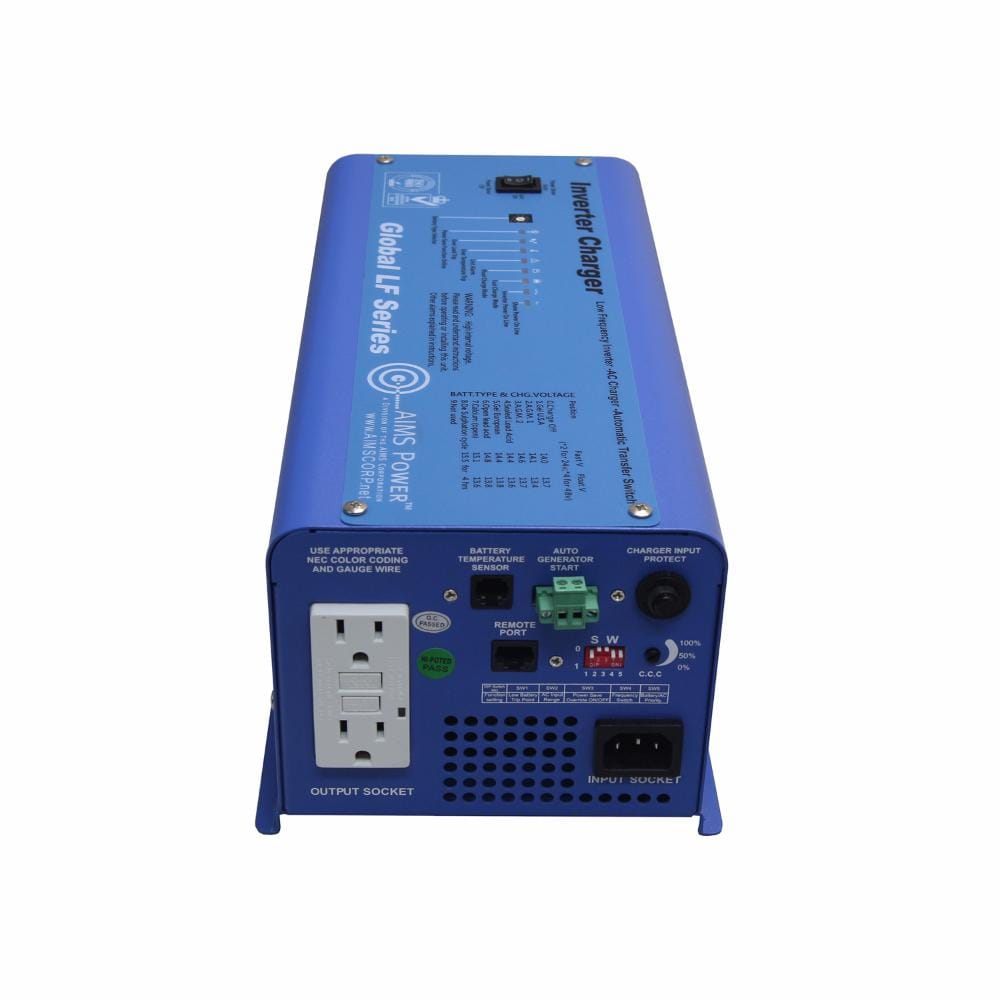

This 600 watt pure sine inverter charger is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 80%.
Specifications
| charger rate | 20A |
| dimensions | 12.8" L x 6.8" W x 5.3" H |
| hertz | 50 Hz; 60 Hz |
| high voltage alarm | 16.0Vdc |
| input voltage | 12 Volts |
| line mode efficiency | >95% |
| low battery alarm | 10.5Vdc-11.0Vdc |
| low battery trip | 10.0Vdc-10.5Vdc |
| low battery voltage restart | 15.5Vdc |
| mfd | 10.0Vdc |
| nominal efficiency | 80% (Peak) |
| nominal input voltage | 12.0Vdc |
| output frequency | 50Hz - 0.3Hz / 60Hz - 0.3Hz |
| output voltage | 100/110/120 Volts AC |
| output waveform | Pure Sine/Same as input (Bypass Mode) |
| surge watts (peak power) | 1800 Watts (20 Seconds) |
| thd | <10% |
| typical transfer time | 10ms (Max) |
| wattage | 600 Watts |
| waveform | Pure Sine Wave |
| weight | 16.5 lbs |
