Description

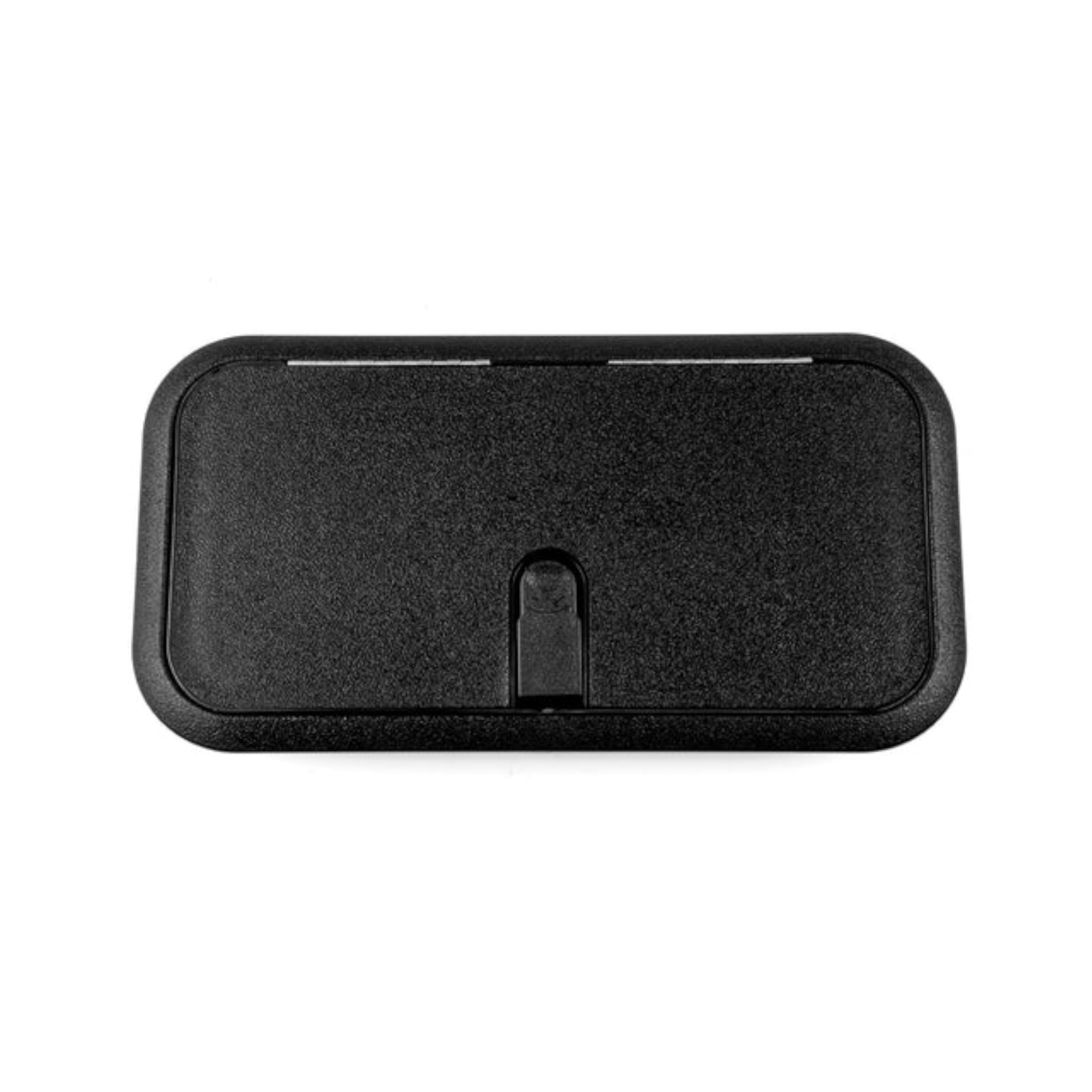

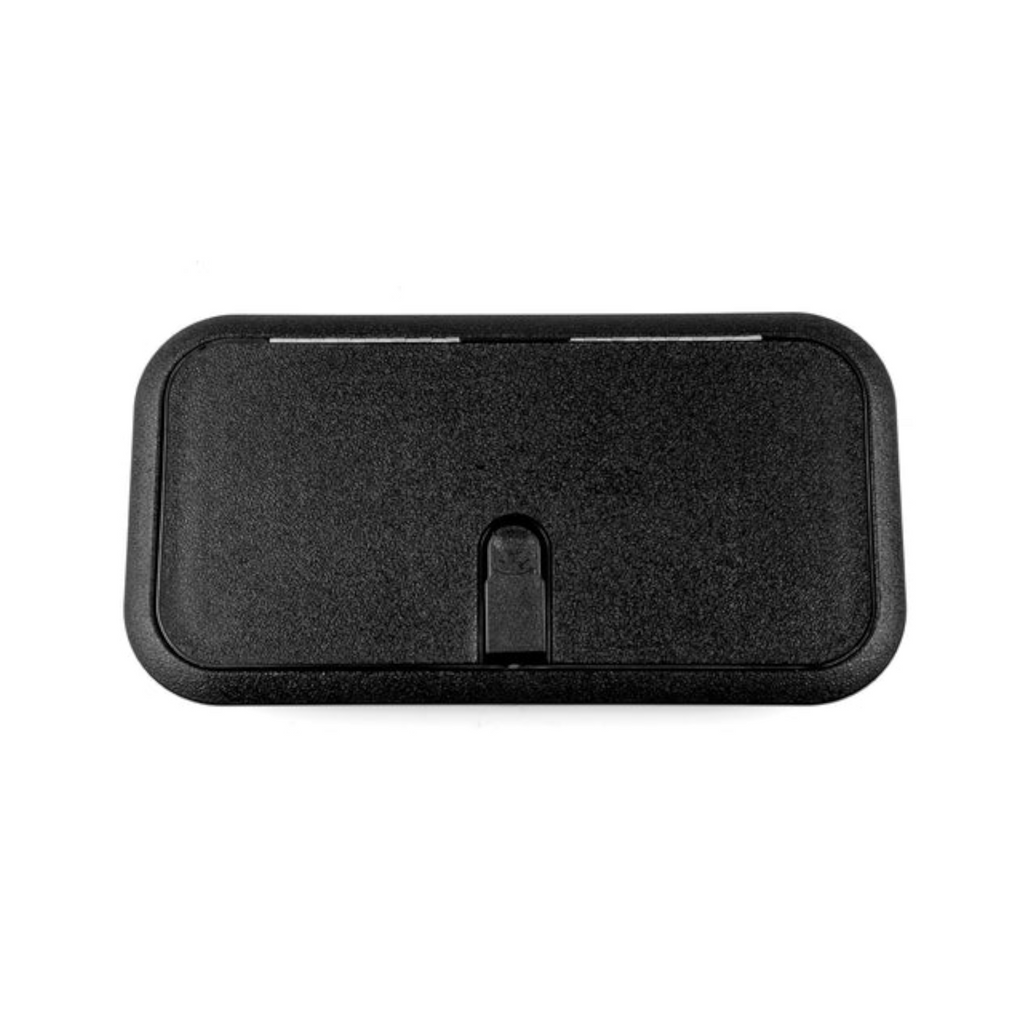

The Designer Series Access Hatch is the most attractive and functional hatch design available, featuring a strong build with a sleek finish. It is engineered for versatility and includes multiple safety features to ensure secure access and waterproof sealing.
Cam style locks provide secure lid closure.
Stainless steel hinges allow a 160-degree opening.
Available in four colors and various sizes to accommodate different needs. Features
Cam style locks hold lid securely
Positive lid seal for water tight fit
Hidden fasteners in frame
Stainless steel hinges allow 160 degree opening
Structurally engineered "walk on" lids
Sizes for all uses - vertical or horizontal
Deck seal optional
Height above deck 5/8
Locking hatches feature stainless steel lock prevents unauthorized access
Colors: black - polar white - sand shell & light gray
The Designer Series is our most attractive, strongest, and most functional hatch design ever featuring tapered edges and hidden fasteners for that finished look. Specs
Size Dim (Outside) Dim (Inside) Cut-Out
7" x 14" 7-1/2" x 14-1/4" 4-5/8" x 11-1/4" 5-1/8" x 11-7/8"
11" x 15" 11" x 15" 7-5/8" x 11-5/8" 8-1/4" x 12-1/8"
11" x 19" 10-7/8" x 18-7/8" 7-5/8" x 15-1/2" 8-1/4" x 16-1/8"
13" x 17" 12-7/8" x 16-7/8" 9-5/8" x 13-1/2" 10-1/8" x 14-1/8"
13" x 24" 12-7/8" x 23-3/4" 9-5/8" x 20-1/2" 10-1/8" x 21-1/8"
13" x 30" 12-7/8" x 29-3/4" 9-5/8" x 26-3/8" 10-1/8" x 27"
16" x 20" 16" x 20" 12-5/8" x 16-5/8" 13-1/8" x 17"
