Dometic 29326650177 Refrigerator Door Light Switch And Light Assembly Kit

Save $44.00
DometicSKU: 29326650177

Price:
Sale price$55.00 Regular price$99.00
Stock:
In stock (9 units)
Free Shipping* (Some exclusions apply)

Compatibility

NDR1292
DM2852
RM3862
Dometic Refrigerators: 6/8 Cu Ft

Description

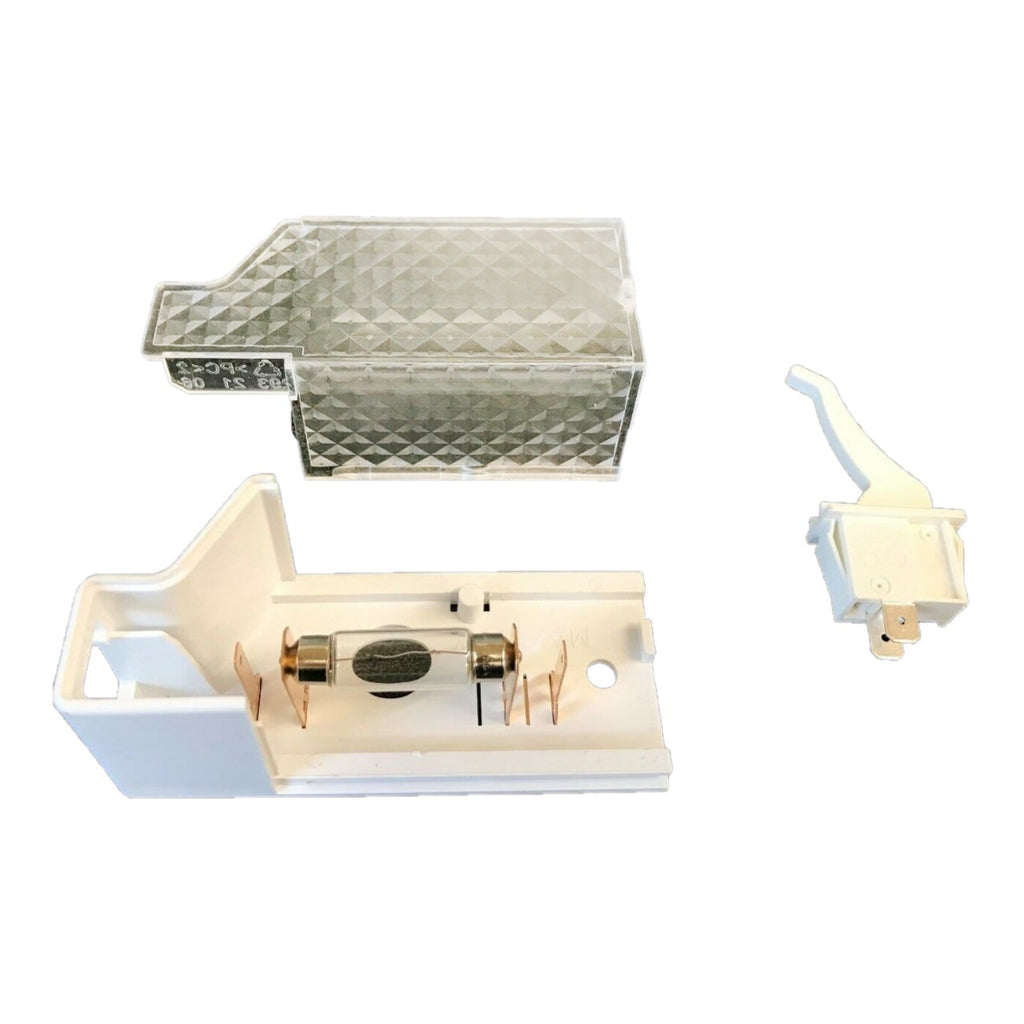

The 29326650177 is a refrigerator door light switch and light assembly kit from Dometic. The kit was designed for use with the following Dometic refrigerator models: NDR1292, DM2852 and RM3862.

Features:
  • Long Plastic Switch
  • White Plastic Light Housing
  • Clear Plastic Lamp Cover
  • 12V/10W Bulb
  • Copper Contact Terminals
  • White Plastic Push Rivets

Included:

  • (1) Door Light Switch Kit Including:
  • (1) Long Light Switch (2932665017)
  • (1) Lamp Holder Housing (2932523018)
  • (1) Lamp Cover (2932106012)
  • (2) Contact Terminal Pin (2932108018)
  • (1) Bulb (2007290006)
  • (2) Push Rivet (0165521030)

Replaces: 2932665017

Specifications

Arm Extends from Base 1-1/2"
Bulb 1 11/16" x 3/8" approx
Contact Terminal Pin 10MM x 25MM
Lamp Cover 3-7/8" L x 1-3/4" W x 1-1/2" T
Lamp Holder Housing 3-15/16" L x 1-3/4" W x 1-9/16" T
Push Rivet 1" L x 3/8" Diameter (at widest center)
Switch Base 1-1/8" Tall x 9/16" W x 3/4" Deep
