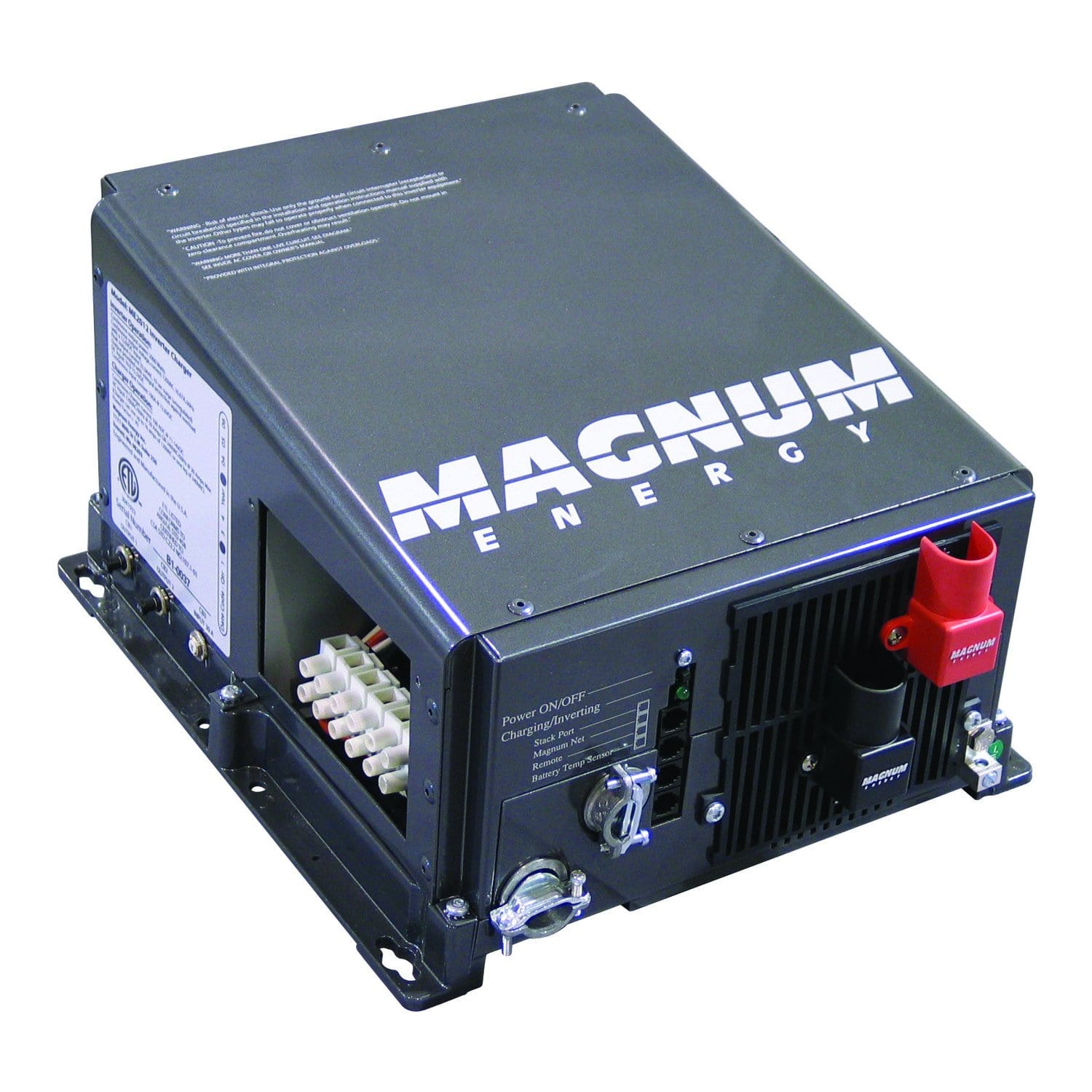

Magnum ME2512 2500 Watt Modified Sine Wave Inverter Charger

Save $975.00
Magnum DimensionsSKU: ME2512

Price:
Sale price$1,698.00 Regular price$2,673.00
Stock:
Re-stocking soon
Free Shipping* (Some exclusions apply)

Description

The ME Series Inverter / Charger from Magnum Energy is a modified sine wave inverter designed specifically for rugged mobile applications.

Specifications

amps 100 Amp
dimensions 13.75"H x 12.65"W x 8.0"D (34.9 cm x 32.1 cm x 20.3 cm)
efficiency Charger: 85%
input current 333 ADC (Maximum Continuous)
input current at rated output (AC amps): 18
input voltage range 9 - 16 VDC
max operating altitude 15,000 (4570 m)
nominal ac output voltage 120 VAC - 5%
nonoperating temperature -40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F)
no load (120 VAC output, typical): 23 watts
operating humidity 0 to 95% RH non condensing
operating temperature -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F)
output frequency and accuracy 60 Hz - 0.1 Hz
output voltage 12 Volt
peak efficiency 0.91
power factor > .95
search mode 5 watts
transfer relay rating 2 legs at 30 A for 120 V/30 A or 240 V/60 A service
transfer time 16 msecs
type Modified Sine Wave
wattage 2000 Watts
waveform Modified Sine Wave
weight 41 lb (18.6 kg)
