Description

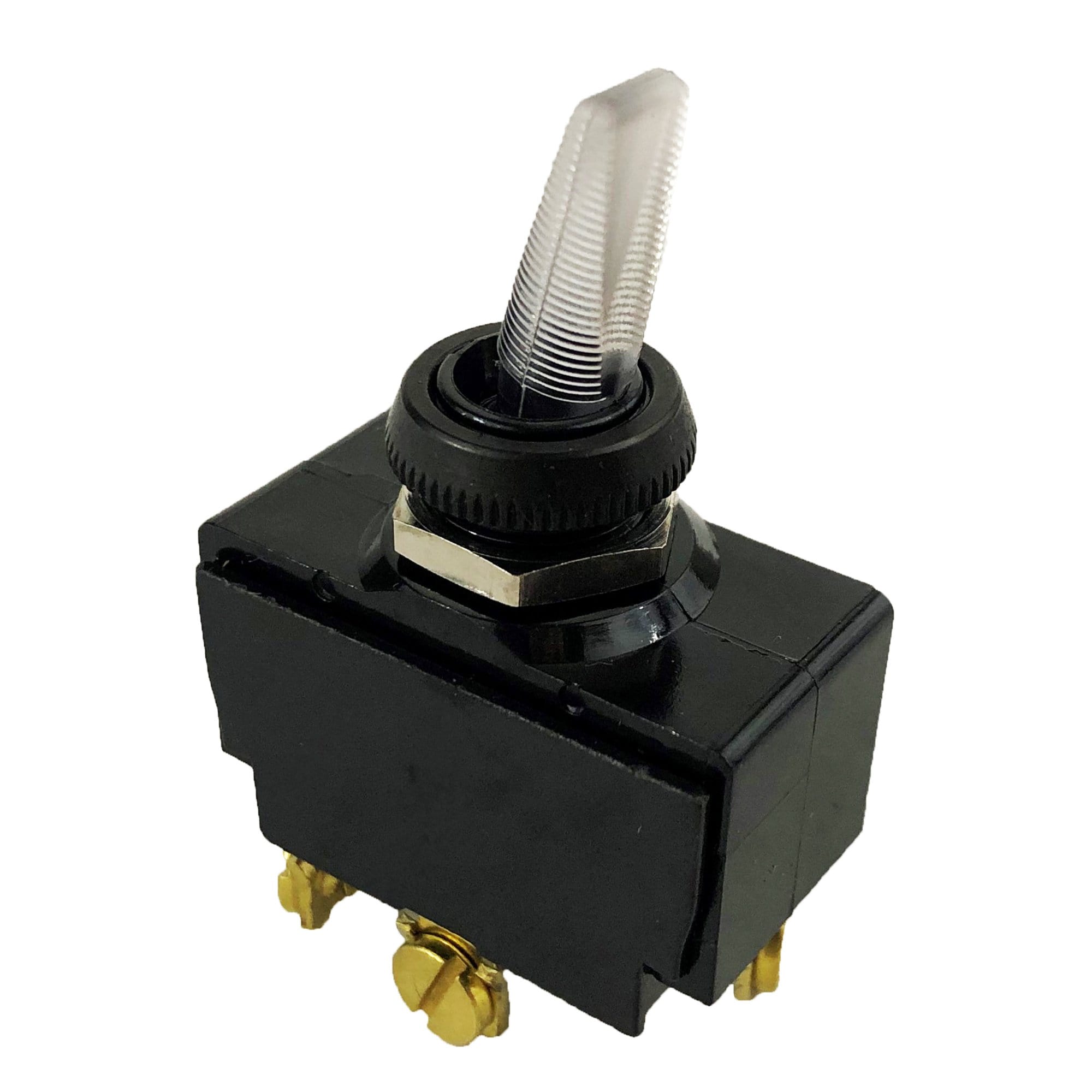

Littelfuse Toggle Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The 54100 series includes part 54109 which features an illuminated toggle indicating position.
O-Ring Sealed Bushing
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Actuator | Wedge Toggle |
| Actuator Details | Translucent Plastic - 17.4625 |
| Circuitry | SPST |
| Contact Material | Silver |
| Current Rating (Continuous) | 25A |
| Housing | Black Plastic |
| Input Terminals | 4 Screw |
| Mounting Method | Nickel Plated Brass Face Nut |
| Panel Thickness | Up to 1/8 (3.17mm) thick |
| Positions | On (Red) - None - Off (White) |
| Voltage Rating (Max) | 12V |
