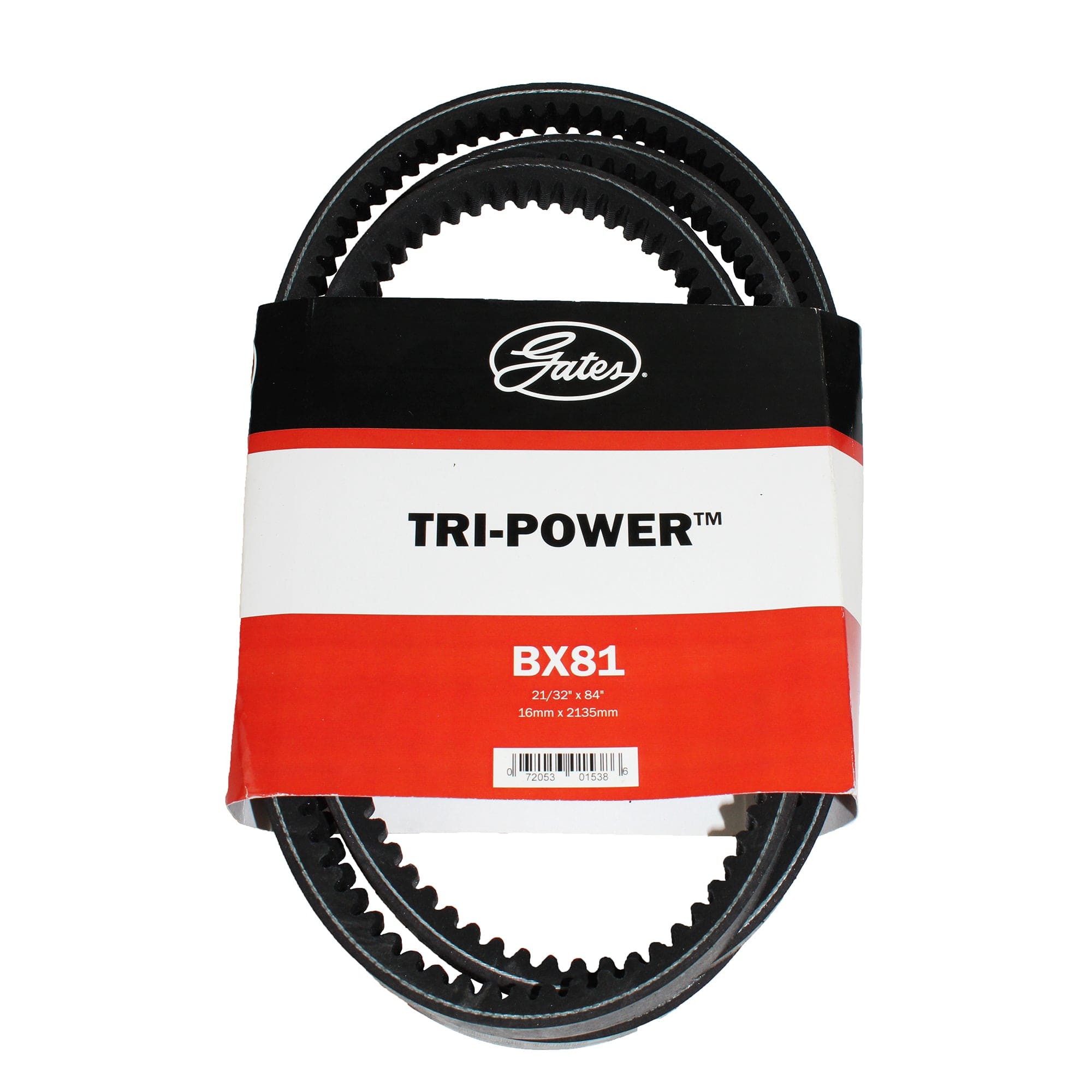

Gates BX81 Tri-Power Notched BX Section V Belt - 21/32" x 84"

Save $28.00
GatesSKU: GAT-BX81

Price:
Sale price$34.00 Regular price$62.00
Stock:
Re-stocking soon
Free Shipping* (Some exclusions apply)

Description

This is a BX section V belt that can be used in various applications including industrial and agricultural power transmission, as well as HVAC, conveyor systems, centrifugal pumps, air compressors, crusher applications, and more.



  • The Gates V-belts are wrapped belts that feature a patented single layer fabric construction for longer cover life.  The cover protects the belt core from oil dirt and heat.  The wrapped cover also makes the belt suitable for clutching applications.
  • Notches molded into the belt during manufacturing increase flexibility, making this belt well suited for drives with smaller diameter sheaves
  • Flex-Bonded Cords - utilizes a proprietary core material blend that strongly bonds the polyester cords to the body of the belt, resulting in uniform load distribution and absorption of bending stress without cord deterioration.
  • Gates Curves - The belt cross-section has been optimized to provide proper cord support and full contact with the pulley to provide uniform loading, uniform wear, and increased belt life.



Meets Requirements:

  • RMA oil and heat resistant standards
  • RMA static conductivity requirements



Recommended Applications:

  • Can be used in a variety of industrial and agricultural power transmission applications. These belts are used in HVAC applications, conveyor systems, centrifugal pumps, air compressors, crushers, and more.



Matching / Multi-Belt Drives:

  • Part of the V80 Matching System - Can be used individually in a single v belt drive or can be used in sets of 2 or more belts for higher horsepower applications.  All belts in a multiple belt drive must be within a certain length tolerance in order for the belts to work together to provide the full design horsepower.



Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Length 84"
Thickness 13/32"
Top Width 21/32"
