Samlex SEC-2450BRM Rackmout Regulated 50 Amp 24 Volt Output Switching Power Supply

          Be the first to write a review
You Pay $582.23
$880.99 Save 34%
Free Shipping
In Stock!

Would you like to calculate shipping for this item?

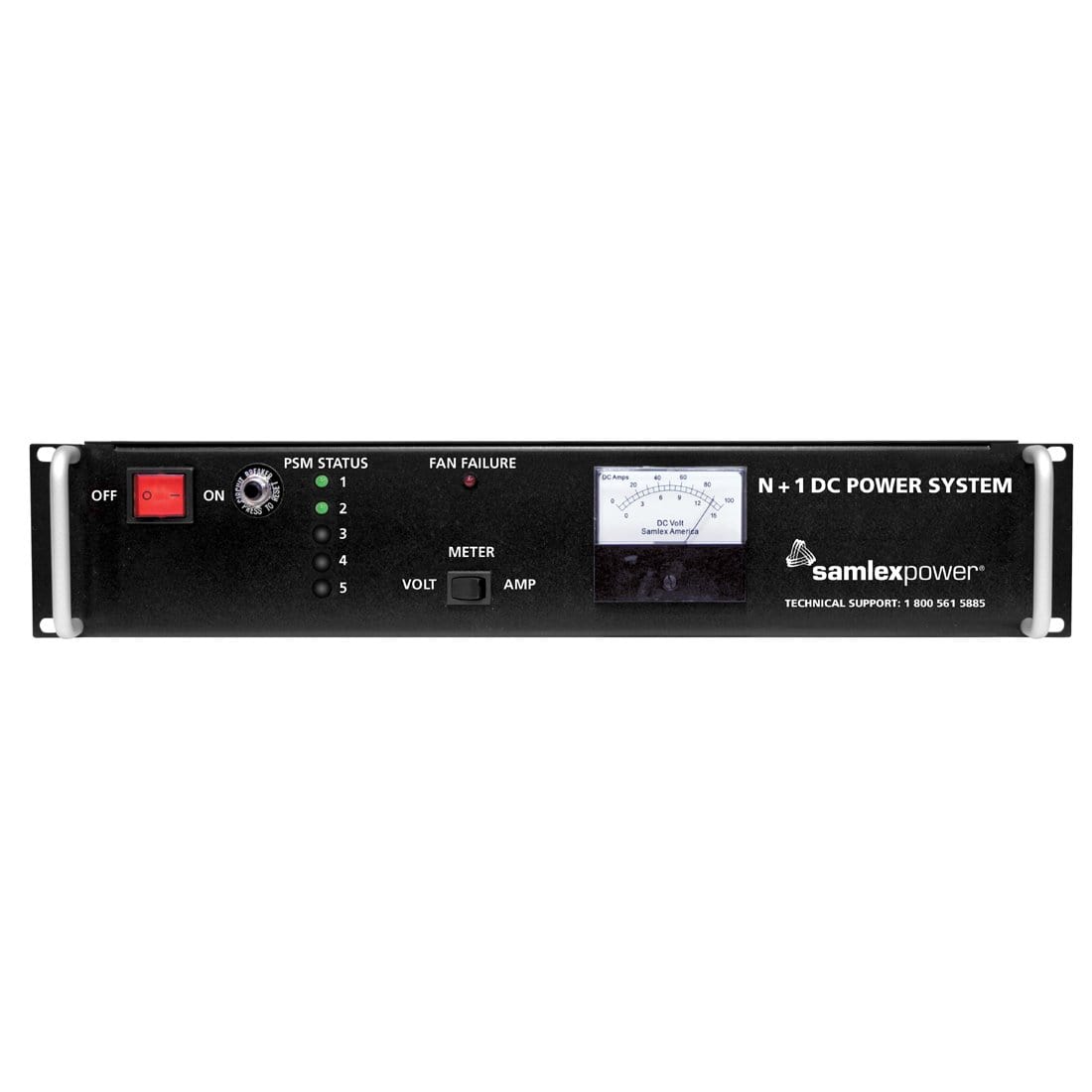

The Samlex SEC-2450BRM is an ac-dc power converter that provides a highly regulated dc output voltage of 27.6 volts at 50 amps of continuous power and comes mounted on a 19" 2u size rack plate. See the details tab for more information.

This unit was designed for use with critical power supply applications, telecommunications, mobile sound and audio displays, GPS receivers, security systems and CCTV systems. An external battery can be connected for back-up and a section of the output current (up to 8 amps) is diverted to charge the batteries when in a state of discharge using the built-in battery back-up module. The battery supplies the dc load on loss of utility power. Features of the SEC-2450BRM include n+1 redundancy, front panel analog volt/ampere meter display.

  • Comes mounted on a 19"" 2u size rack
  • 25 pin d-sub connector for remote monitoring system
  • Voltage / amp meter
  • Built-in battery back up module
  • Module status led's, fault indicator led's and fault alarm
  • Number of modules: 5
  • Cooling: forced air, 2 fans
  • Protections: short circuit, current limit, fan failure, (led and buzzer, input surge suppression
  • Power cord: 12 awg / 3 conductor
  • Power cord plug: 125v, 30a, nema l5-30p, twist lock type
  • 2 year warranty



  • Input voltage range : 105 to 125 vac, 50 / 60 hz
  • Input Current : 20 a
  • Output Voltage : 27.6 vdc
  • Output Voltage : 27.8 vdc (No Load)
  • Output voltage (full load) approx : 27.4 vdc
  • Regulation : 1%
  • Continuous current output : 50 a
  • Surge output current : 57.5 a
  • Output Current : 60 a (Limit)
  • Output ripple : 150mv
  • Output noise : less than 1.5 v
  • Maximum battery charging current : 4 a
  • Fuse : 250 v, 4a
  • Circuit breaker : 125 /250 v, 25a
  • Dimensions : 19"L x 15.9"W x 3.6"H
  • Weight : 25 lbs
  • Output Voltage : 210-250 Volts
  • Amps : 40 Amps
