Description

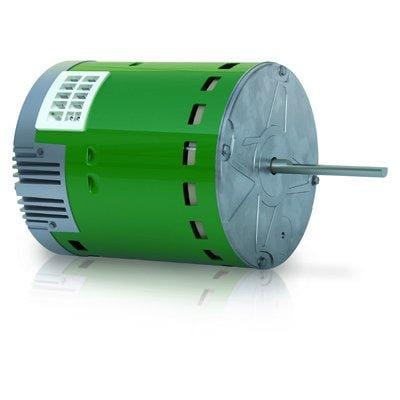

The Genteq 6103E Evergreen ECM is a replacement motor.
Features:
- Maintains ECM-level Efficiency up to 80%
- Soft Start and Off Ramp for quiet operation
- Alternate use for Commercial Building Series VAV Box and Packaged Heat Pump Retrofit/Upgrade Motor for a PSC system (Refer to Evergreeen EM Instruction Manual)
- Encapsulated Electronics
- 4kV Surge Protection
- Electronic Overload Protection
Specifications:
- Multi-speed, constant torque, brushless DC motor
- Designed to replace direct-drive blower motors in residential and light commercial indoor furnaces, air handlers, and package systems that were designed with a standard ECM motor, such as an X13 or equivalent competitor model.
- Automatically determines motor direction using Genteq’s Rotation Sensing Technology.
- 5 discrete speeds using 24VAC (3 using 18VDC) Low voltage signal harness provided with the motor. Operating speed range of 600-1200 rpm
- NEMA 48-frame (5.6 inch diameter) Belly Band Mount with 5-inch long 1/2" diameter shaft.
- UL and CSA recognized component.
Specifications
| amps | 4.8 |
| horse power | 2021-01-03 00:00:00 -0500 |
| rotation | Reversible |
| rpm | 600-1200 |
| voltage | 115 |
