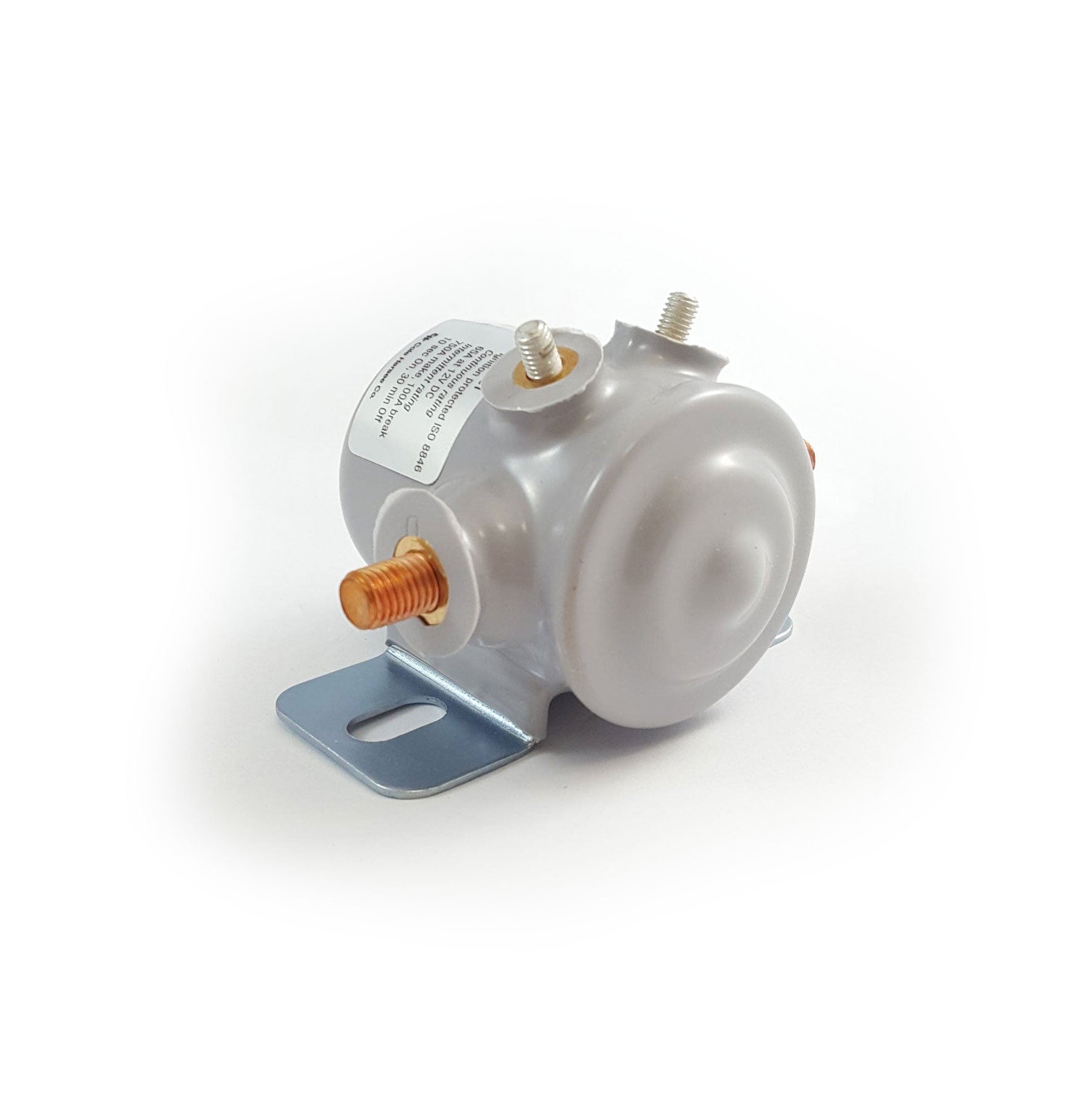

The 24117-01 is a 12V insulated continuous duty SPST solenoid from Cole Hersee. It ensures reliable electrical performance for various applications. It features a PVC-coated plated steel housing, single-pole, single-throw (SPST) circuitry, and normally open contacts.
The solenoid's studs are electrically isolated from the housing, and its heavy-duty contacts and high contact force enable it to handle high current loads. With an intermittent rating of 750 A make and 100 A break at 10 seconds on, 30 minutes off, this solenoid relay offers durability and efficiency.
Features:
- 65 A continuous current rating
- 750 A make, 100 A break at 10 seconds on, 30 minutes off
- 12 V coil and a coil impedance of 17.5 ohms
- Insulated coil design electrically isolates the studs from the housing
- SPST circuitry and normally open contacts
- Plated steel housing with a PVC coating is sealed to an IP66 rating
- Two large 5/16"-24 copper power studs and two small #10-32 steel coil studs (control circuit) are heavy and durable
- Flat bracket
- Included hex nuts and lock washers are bagged
Warning: Product may contain materials cautioned by California Proposition 65
